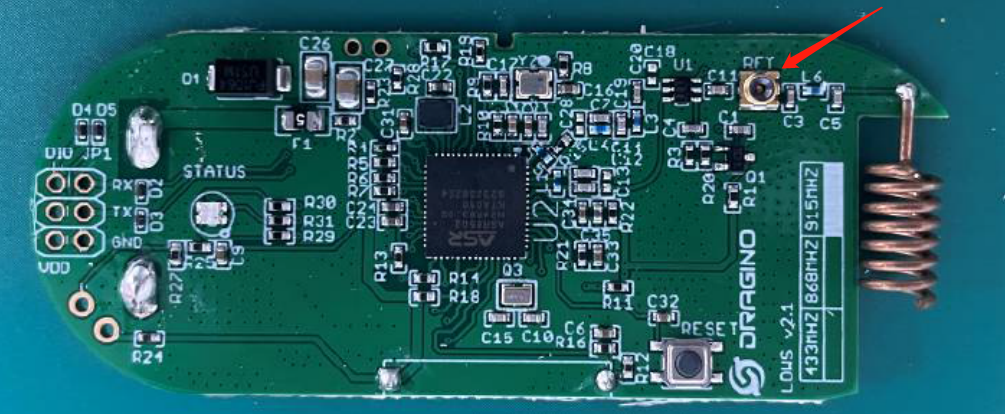

Some Dragino Devices use RF test connector instead of i-pex connector. Example is LDS02:


Note: This connector is applied to RF circuits and provides a switch interface for circuit tests. User is not able to connect a general I-Pex connector on it.

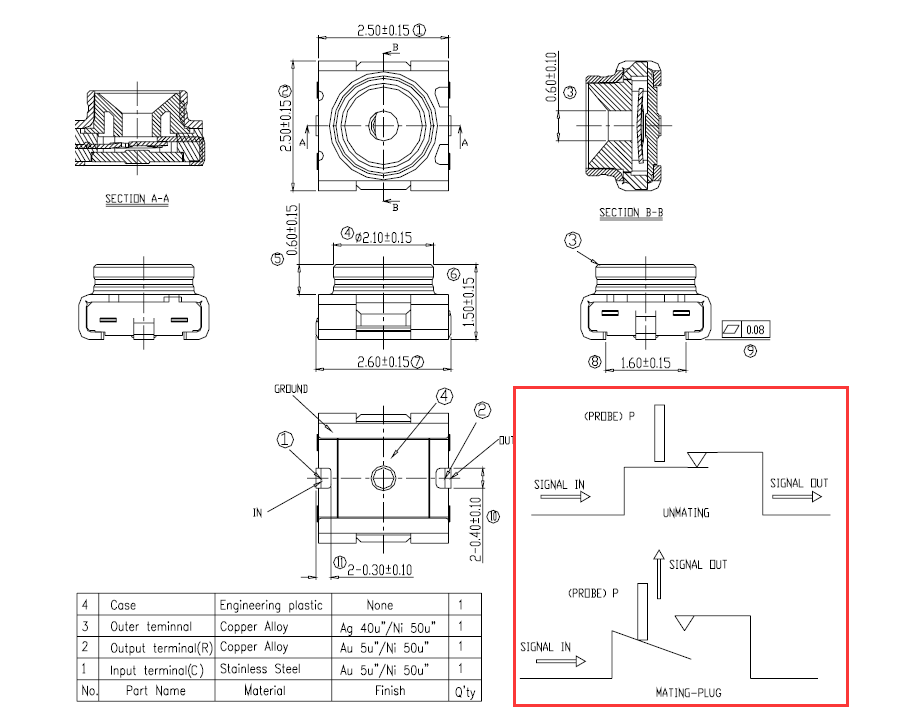

Below are the detail for this connector:
