Netmore LoRaWAN

[1.  Netmore LoRaWAN]{xwiki-translated-attribute-_msthash="73" xwiki-translated-attribute-_msttexthash="270452"}

In this guide, you will learn how to connect a dragino gateway to the LNS solution provided by Netmore LoRaWAN.

[Login  an account]{xwiki-translated-attribute-_msthash="75" xwiki-translated-attribute-_msttexthash="332358"}

**Login an account **to get started with Netmore LoRaWAN and start using Netmore LoRaWAN Console.

Once you have an account,get started by following steps for adding Gateway,Device and Intergrations.

[2. Configure Gateway connection to ]{xwiki-translated-attribute-_msthash="78" xwiki-translated-attribute-_msttexthash="1417247"}[Netmore LoRaWAN]{xwiki-translated-attribute-_msthash="73" xwiki-translated-attribute-_msttexthash="270452"}

[Below list the support products and Requirements:]{xwiki-translated-attribute-_msthash="79" xwiki-translated-attribute-_msttexthash="1665118" style="color:blue"}

1.  LoRaWAN Gateway model:   LIG16,LPS8N,LG308N ,DLOS8N ,LPS8V2

[What do you need to prepare?]{xwiki-translated-attribute-_msthash="81" xwiki-translated-attribute-_msttexthash="561587" style="color:blue"}

A gateway that can access the internet normally.

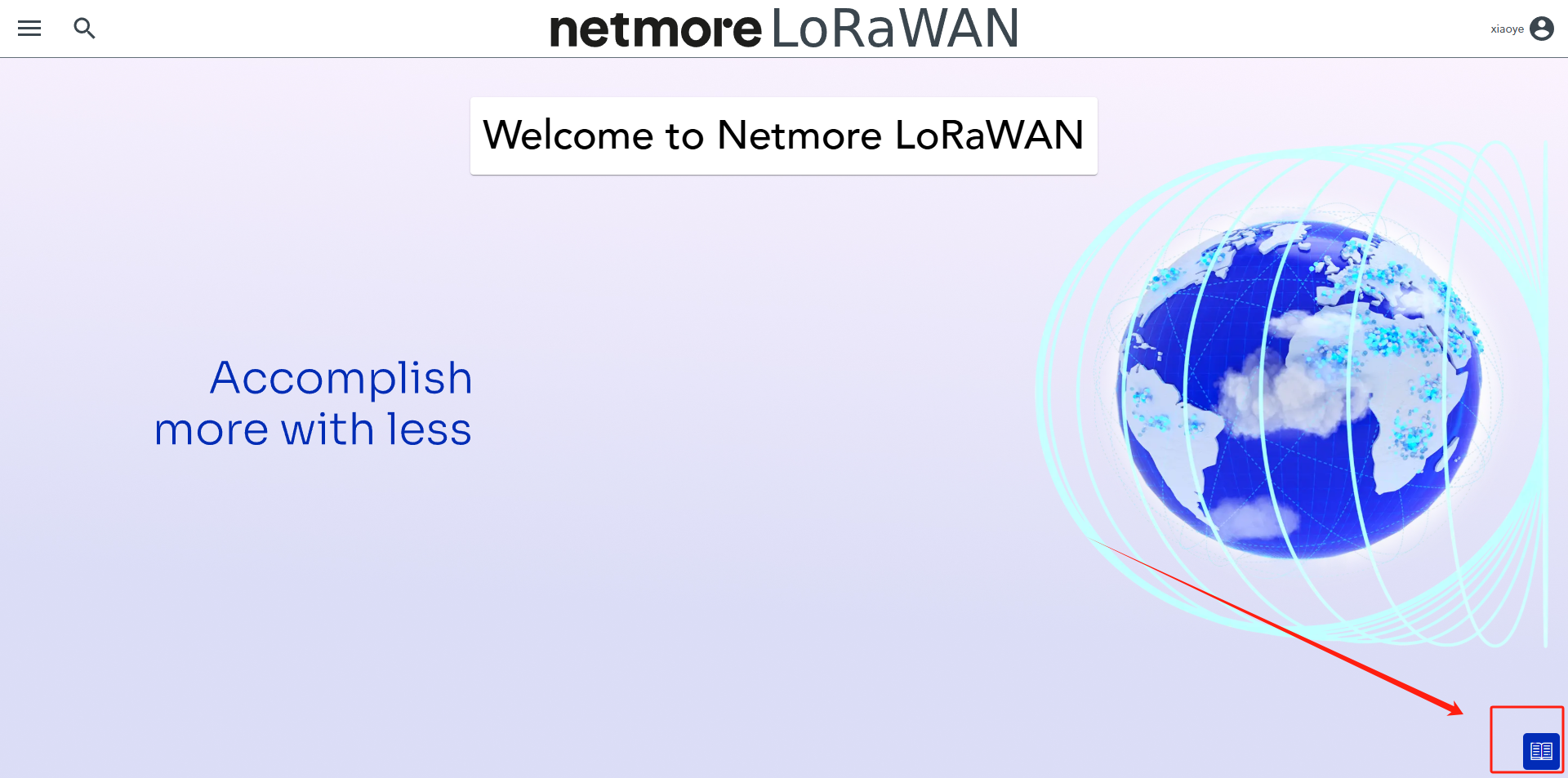

For more information about Netmore LoRaWAN, please refer to the document in the lower right corner of Netmore's official website.

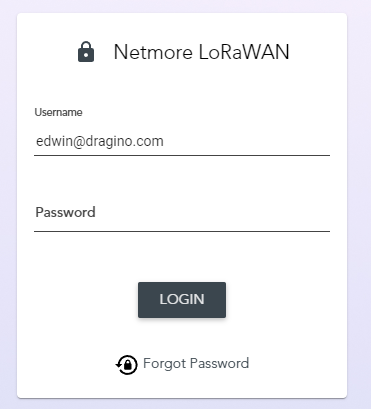

[Step 1. Log in Netmore LoRaWAN]{xwiki-translated-attribute-_msthash="87" xwiki-translated-attribute-_msttexthash="575809"}

[Step 2. Create a LoRaWAN Gateway]{xwiki-translated-attribute-_msthash="88" xwiki-translated-attribute-_msttexthash="666211"}

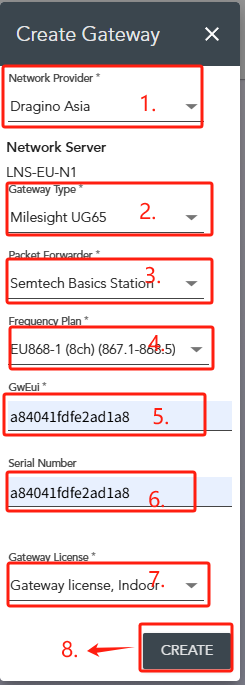

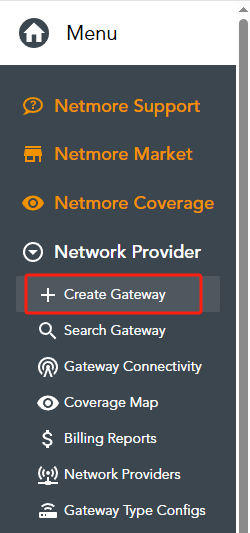

First, Uesrs need to click "Create Gateway" in the menu

1.Network Provider:Selecting an Network Provider

2.Gateway Type:Select the gateway model, such as Dragino LPS8v2

3.Packet Forwarder:Select Semtech Basics Station

4.Frequency Plan:Select the desired frequency plan

5.GwEui:Fill in the gateway eui of the gateway

6.Serial Number:Enter the gateway's SN

7.Gateway License:Select Gateway License

8.GREATE

{#Iimage-20250520163628-3.png .wikigeneratedid xwiki-translated-attribute-_mstalt="431548" xwiki-translated-attribute-_msthash="102"}

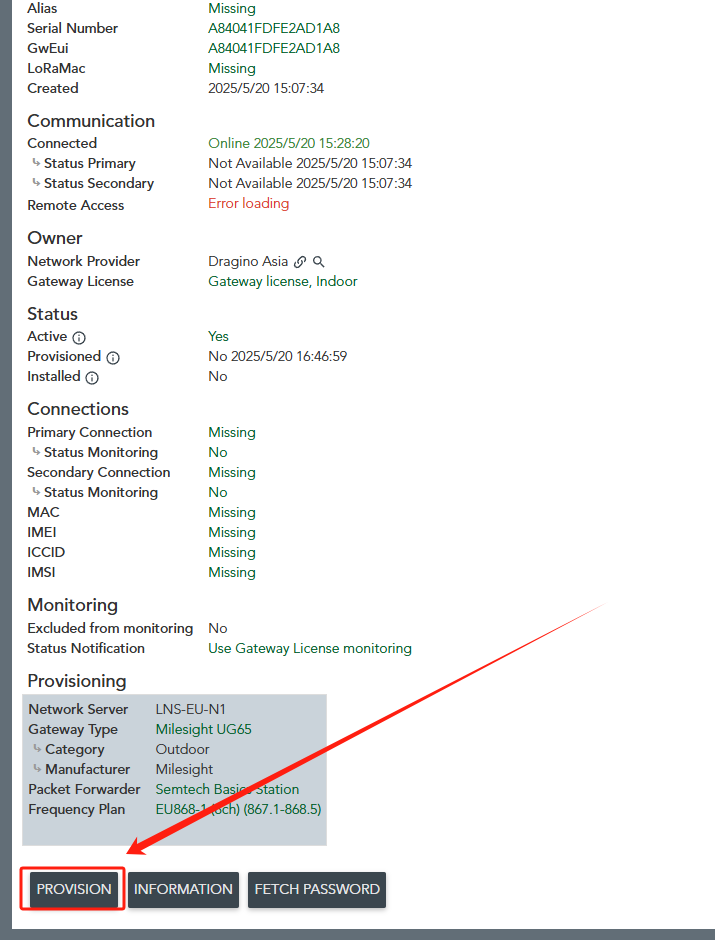

In the gateway's [information]{xwiki-translated-attribute-_mstmutation="1"} interface, click "[provision]{xwiki-translated-attribute-_mstmutation="1"}" to activate the gateway device.

Step 3. Access the gateway GUI

To configure the gateway, access it via the Web UI. To learn how to do that, refer to the Quick Start Guide for each gateway.

Users need to fill in the LNS URI and upload the Certificate.

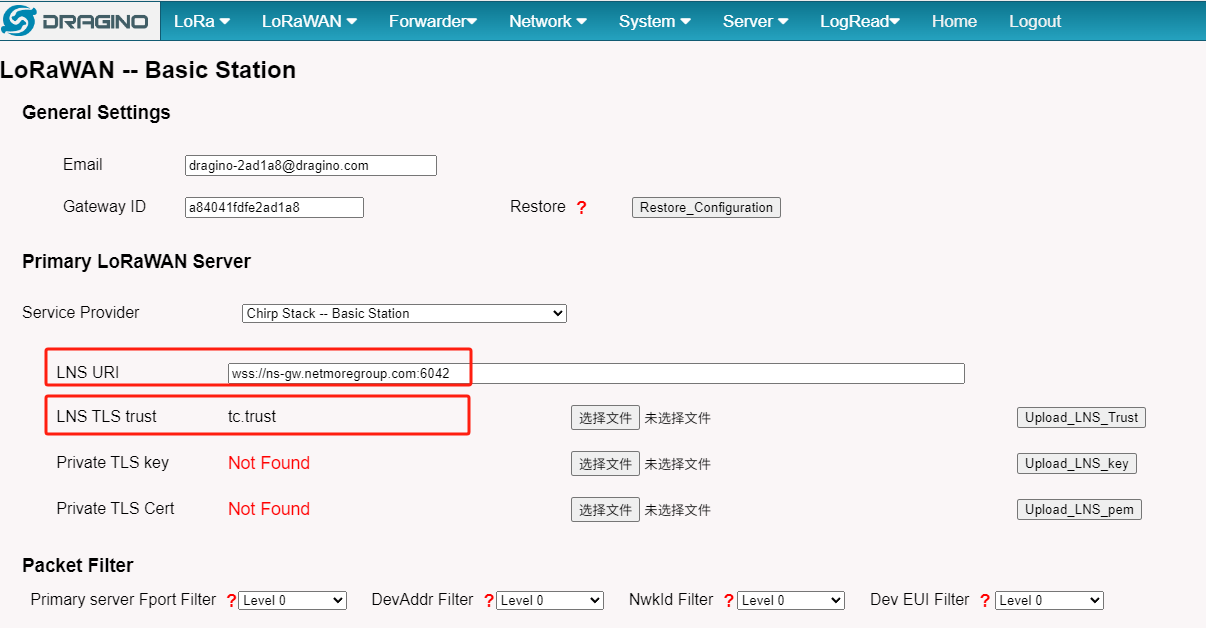

Step 4. Configure Station

Users need to fill in the  LNS URI and upload the Certificate.

Note: The Service Provider does not have Netmore LoRaWAN, we will fix and add it in the next firmware release

Users can now use Chirpstack Basic Station for testing.

LNS URI:                          wss://ns-gw.netmoregroup.com:6042

LNS TLS trust:           Download it: tc.trust

Trouble Shooting

User can check the station log in the** LogRead --> System Log **page.

nd recode the station log in the** LogRead  -->  Recode Log** page.

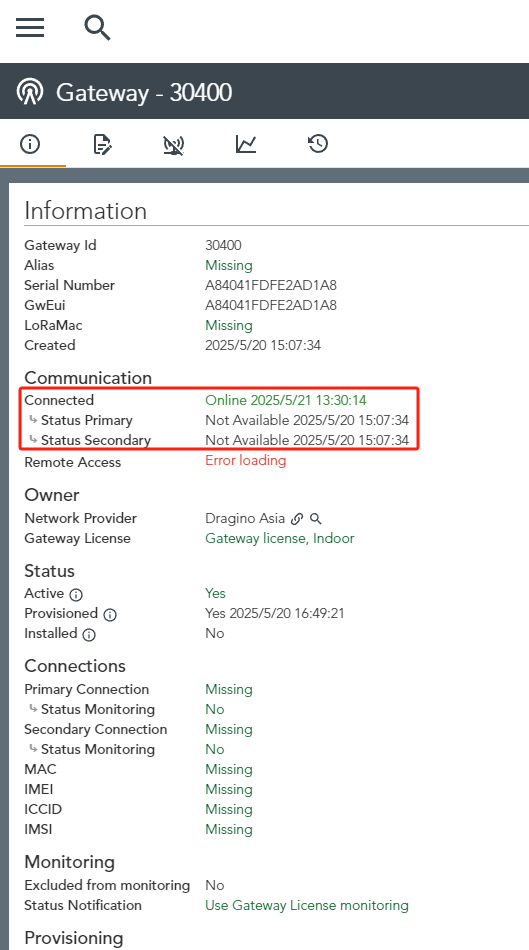

Check the connection status

3.  Configure LoRaWAN node connection to [Netmore LoRaWAN]{xwiki-translated-attribute-_msthash="73" xwiki-translated-attribute-_msttexthash="270452"}

Following is an example for how to join the [Netmore]{xwiki-translated-attribute-_msthash="73" xwiki-translated-attribute-_msttexthash="270452"} LoRaWAN Network.

The gateway is already set up to connect to the [Netmore]{xwiki-translated-attribute-_msthash="73" xwiki-translated-attribute-_msttexthash="270452"}, so we now need to configure the [Netmore LoRaWAN]{xwiki-translated-attribute-_msthash="73" xwiki-translated-attribute-_msttexthash="270452"}.

We take LHT65N as an example.

Create a device in[Netmore LoRaWAN]{xwiki-translated-attribute-_msthash="73" xwiki-translated-attribute-_msttexthash="270452"} with the OTAA keys from LHT65N.

Each LHT65N is shipped with a sticker with the default device EUI as below:

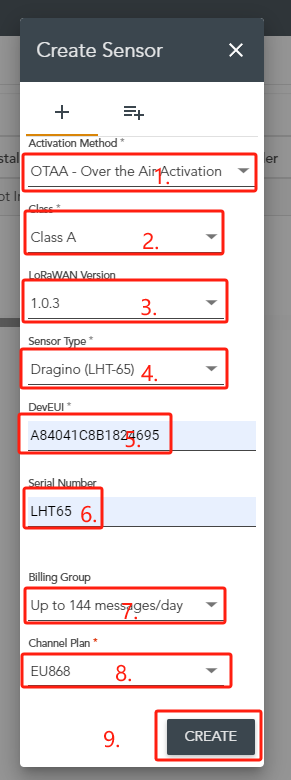

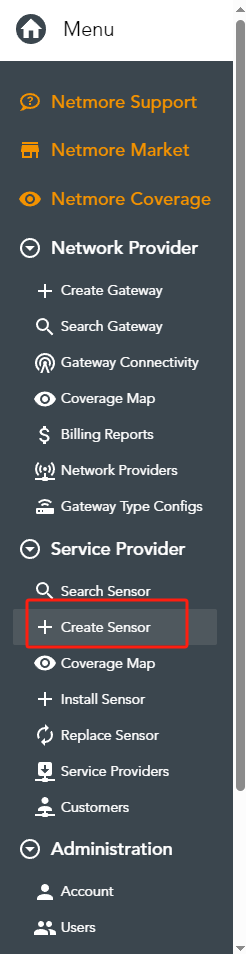

First, Uesrs need to click "Create Sensor" in the menu

1.Activation Method: Configure the OTAA mode

2.Class:Configure the Class A mode

3.LoRaWAN Version:Select LoRaWAN Version 1.0.3

4.Sensor Type:Select the Sensor Type,such as  Dragino(LHT65)

5.DevEUI:Fill in the DevEUI of the LHT65N

6.Serial Number:Enter the LHT65N's SN

7.Biling Group:Set how many data packets to send each day

8.Channel Plan: Set the frequency plan, such as EU868

9.GREATE

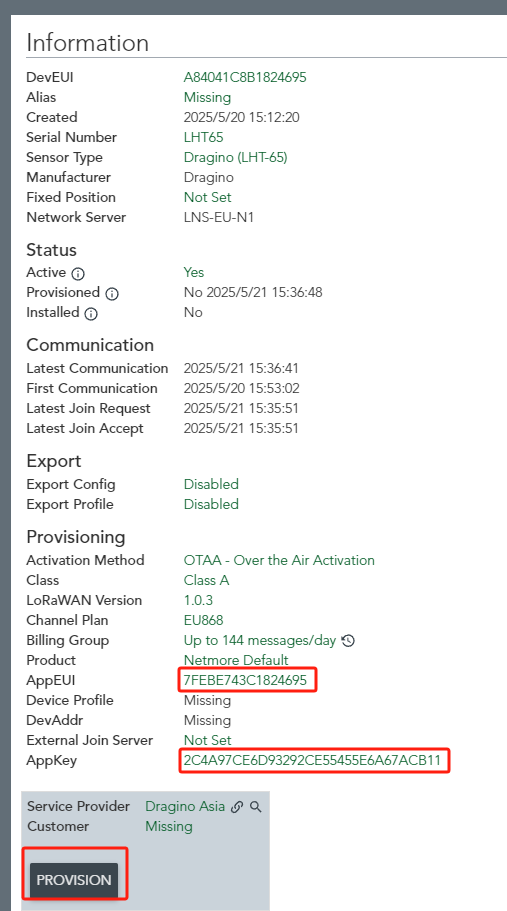

Add the **APPEUI **and APPKEY of the LHT65N, and finally click "PROVISION".

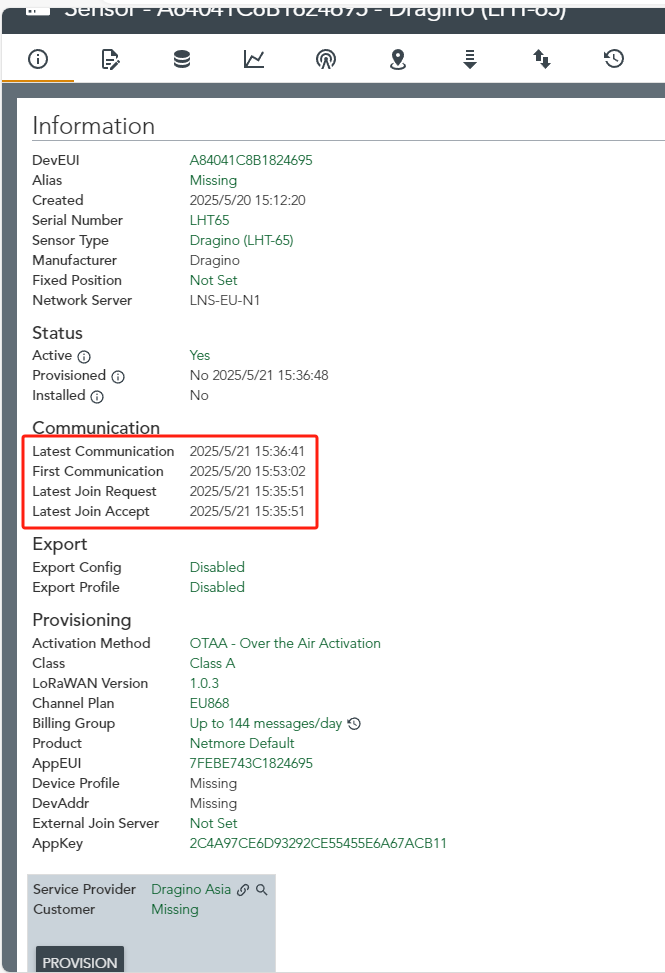

Check the connection status

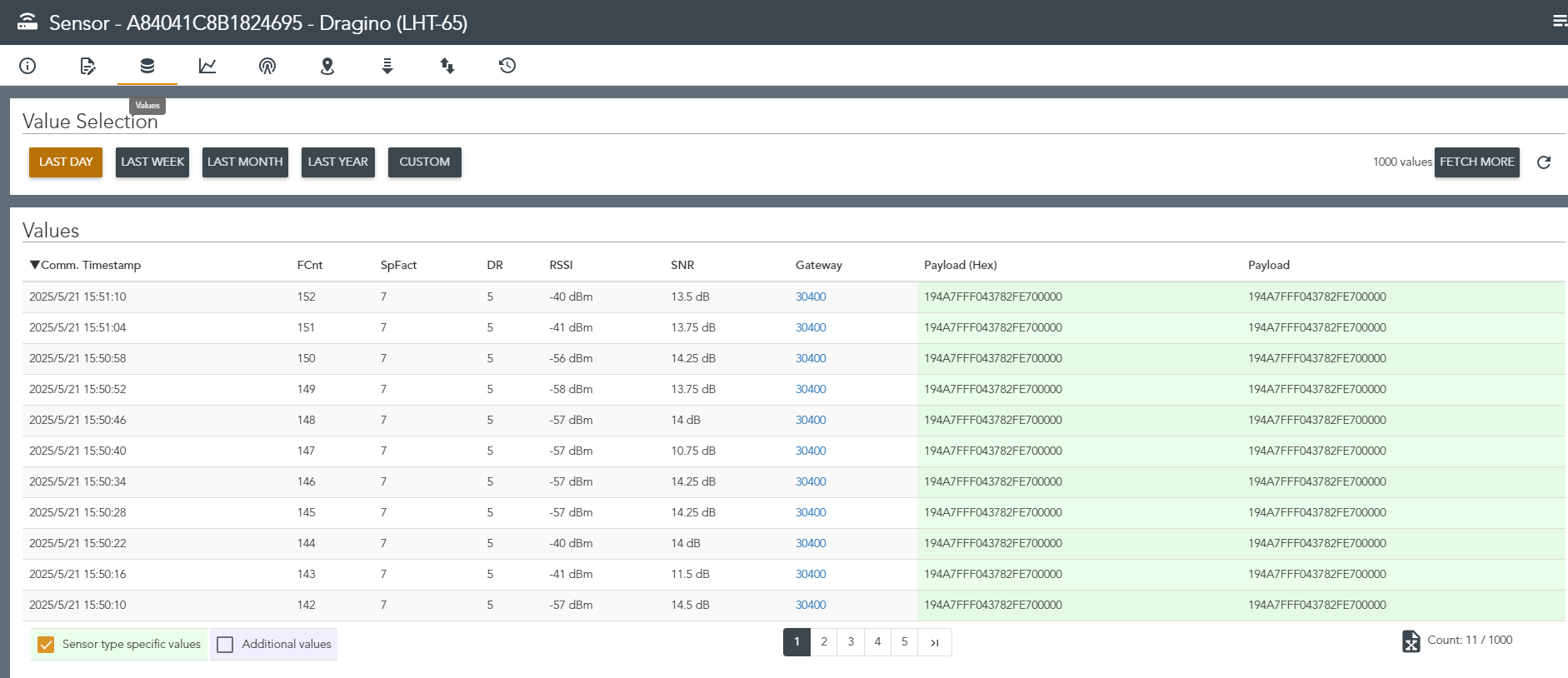

Check the sensor log in the "" interface
