Mydevices / Cayenne

1.  Setup Gateway to connect to Mydevices

1.1  Introduction

The Dragino LoRaWAN gateway amd end node can commuicate with Mydevices LoRaWAN Network Server:  Mydevices

1.2  Gateway Registered

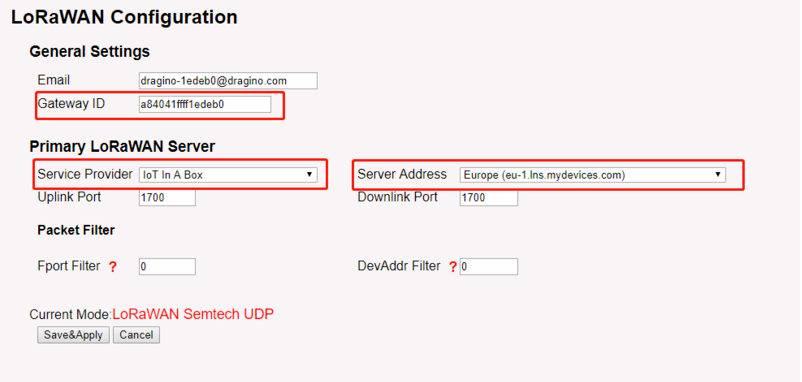

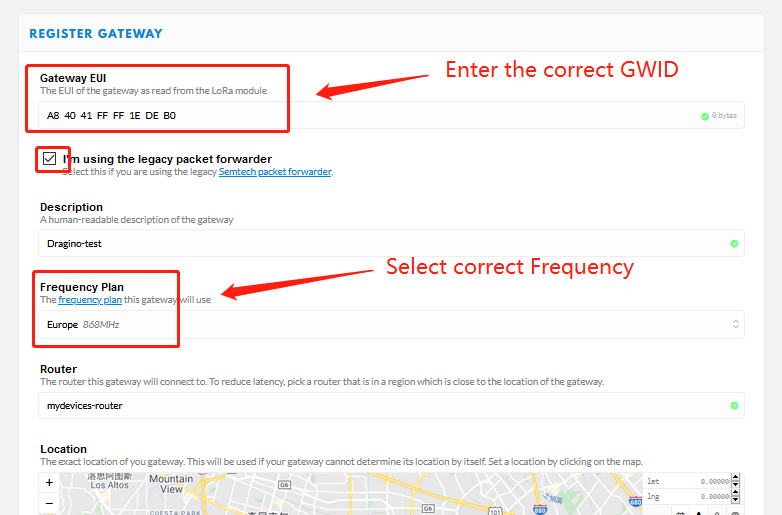

Step 1:  Get the GWID of the gateway and set the correct service address

Configure the gateway

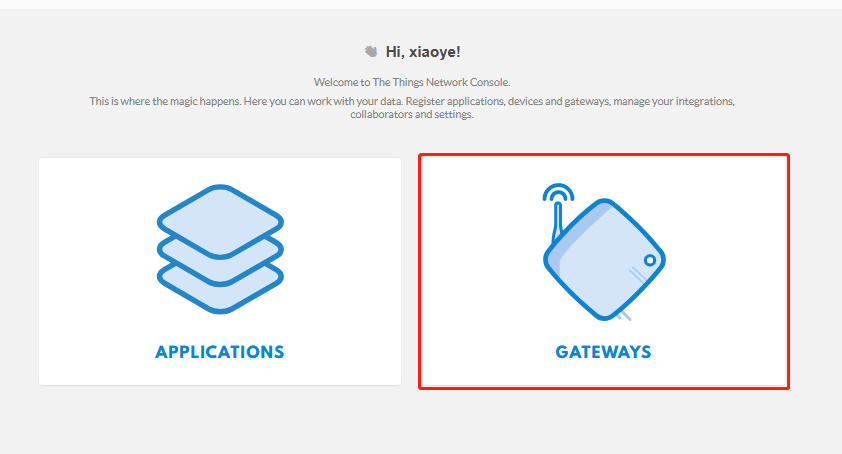

Step 2:  Select Gateway in the mydevice console

Select Gateway

Step 3:  Registered gateway for mydevice

Registered gateway for mydevice

1.3  Check Gateway connection

Users can check if the gateway is properly connected according to 'Satus' or check the gateway WEB like below

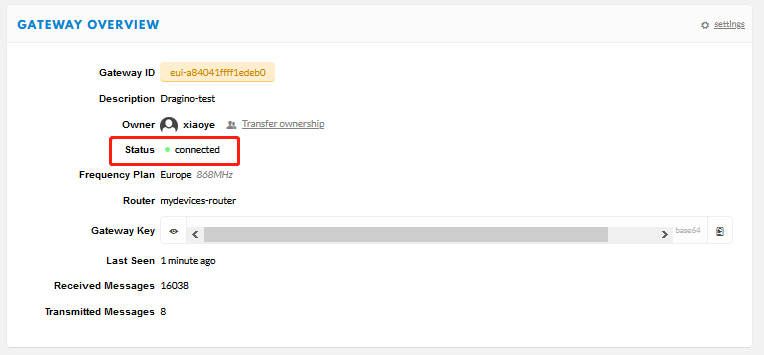

Check Status1

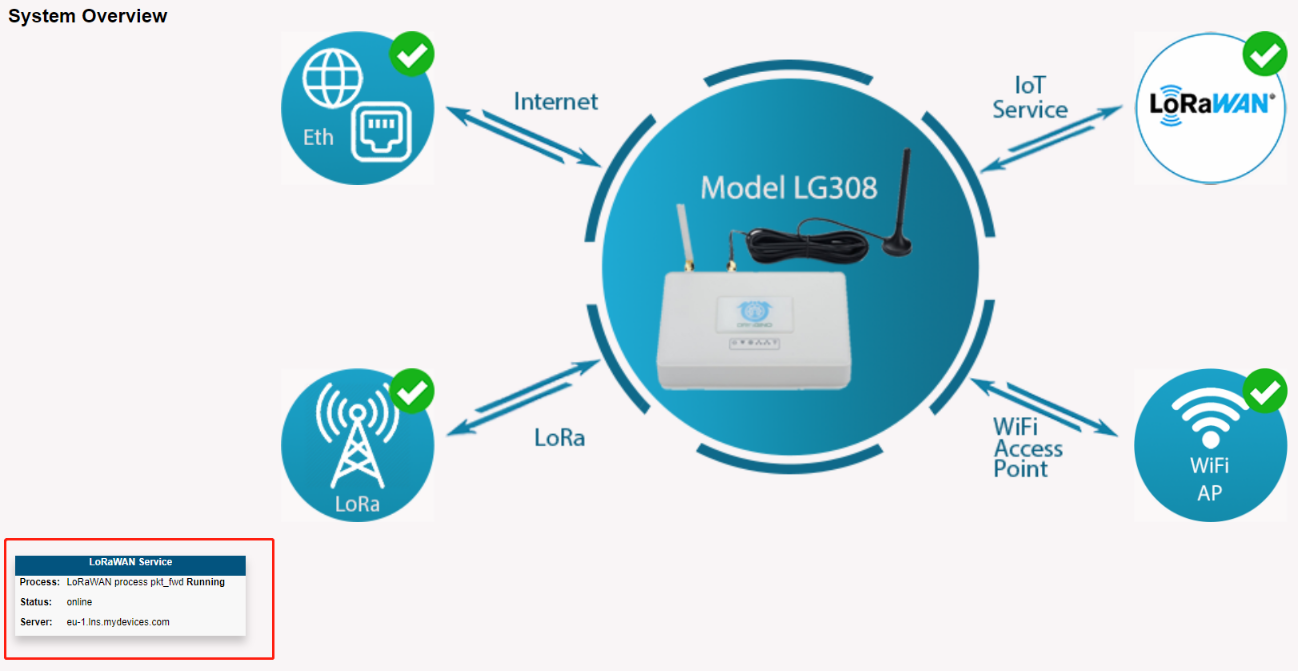

Check statis2

1.4  Check Gateway traffic from Mydevie

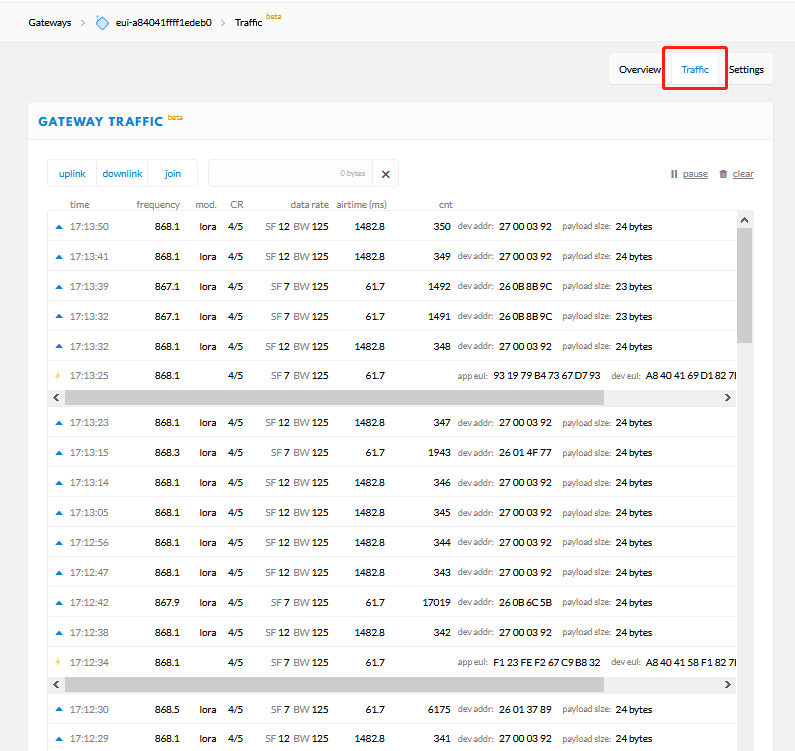

user can see the gateway traffic

Gateway trafiic

1.5  Add up End node for mydevice

**Step 1 :  **Create a device in TTN with the OTAA keys from LT IO controller. Each end node is shipped with a sticker with the default device EUI as below:

AT+DEUI=a8 40 41 08 01 81 87 49
AT+APPKEY=018e e4 c9 b6 c9 d6 86 3a 6f 48 5e db cc 6d 69
AT+APPEUI=70b3 d5 7e d0 01 5f 25

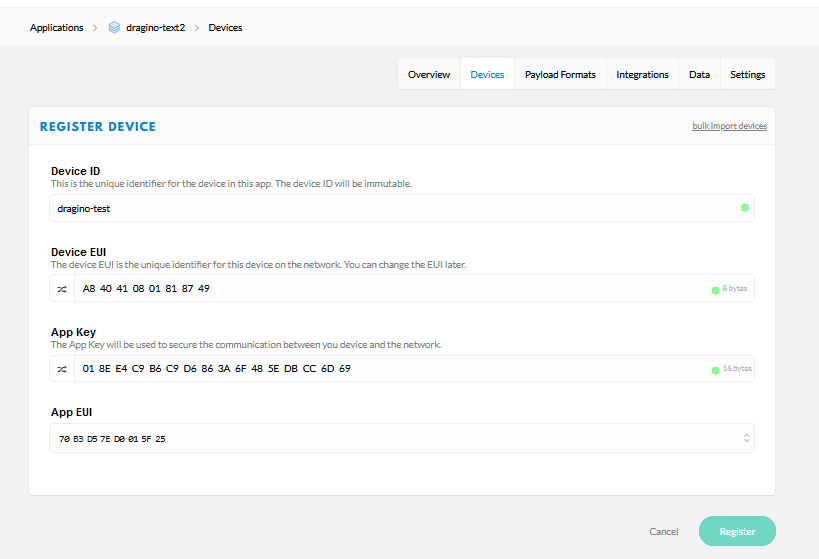

User can enter this key in their LoRaWAN Server portal. Below is mydevice screen shot: Add APP EUI in the application.

Add App EUI

Add APP KEY and DEV EUI

Add App key and App DEUI

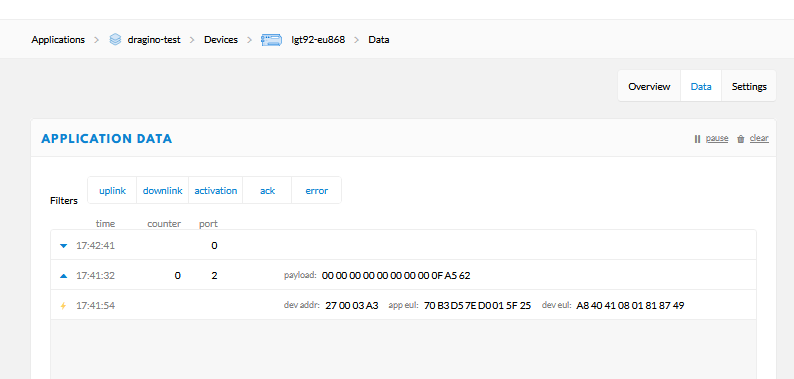

Step 2 :  Power on end node and it will auto join to the TTN network. After join success, it will start to upload message to Mydevice and user can see in the panel and analyze the data

Join mydevice of end node

2.  Route a TTN End Node to Cayenne

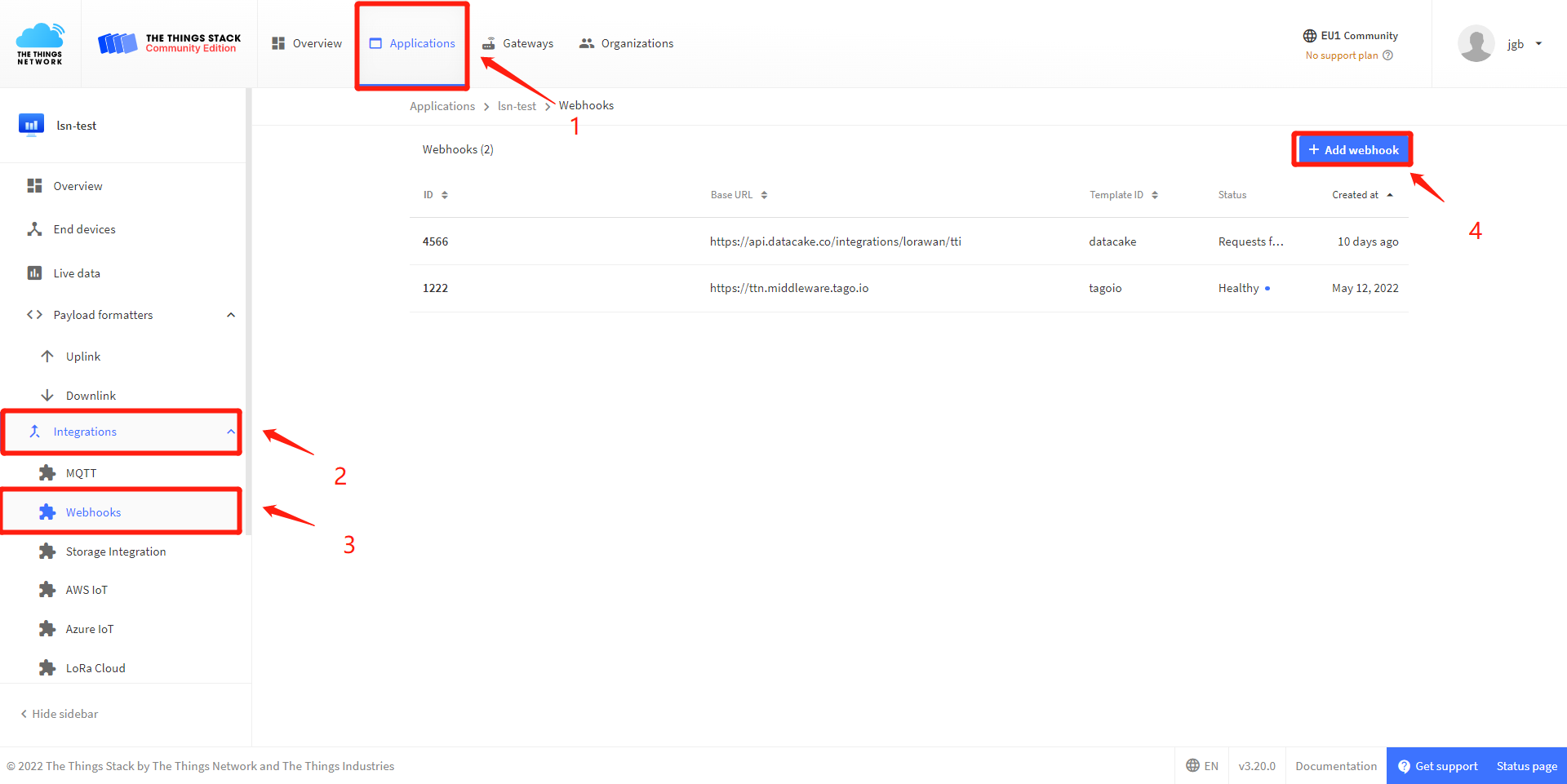

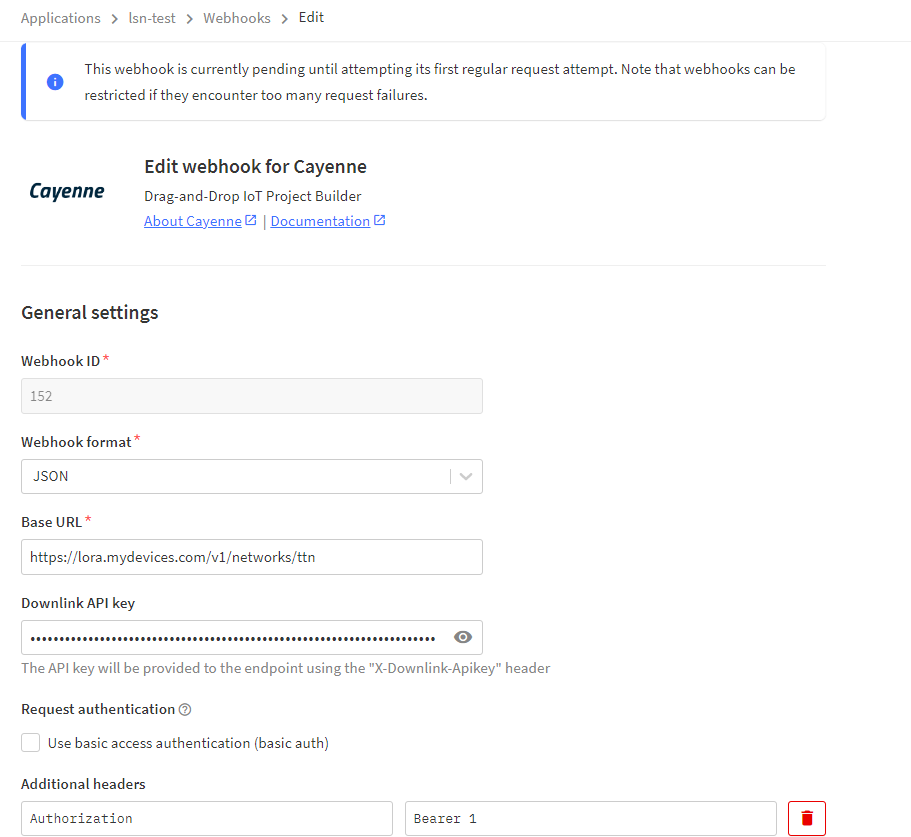

**Step 1: **  Add a webhooks

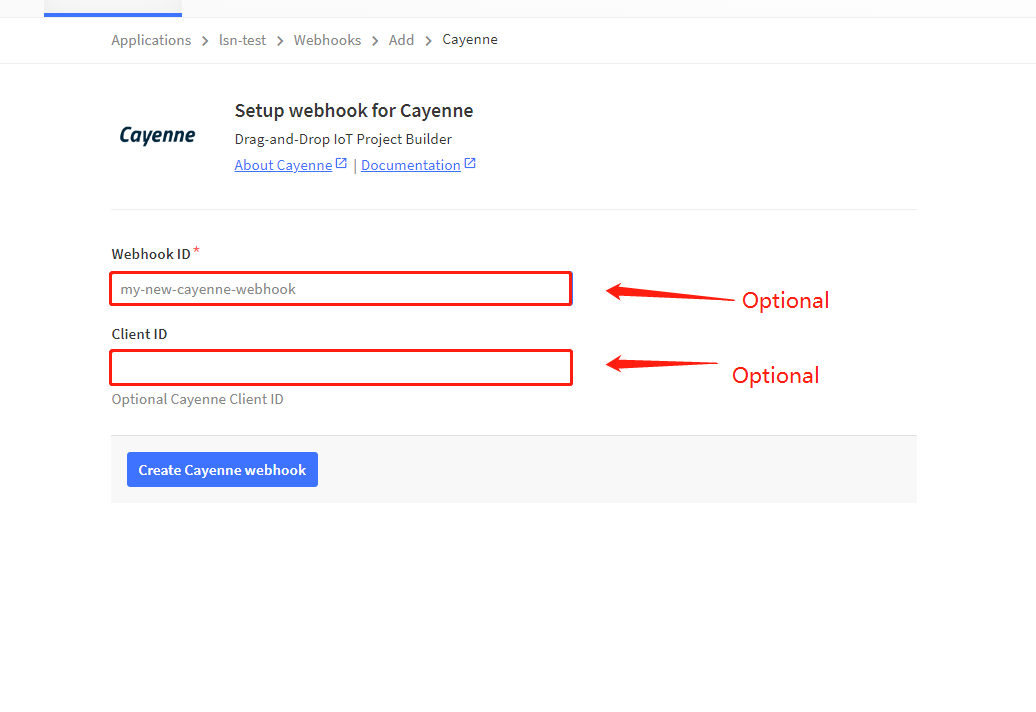

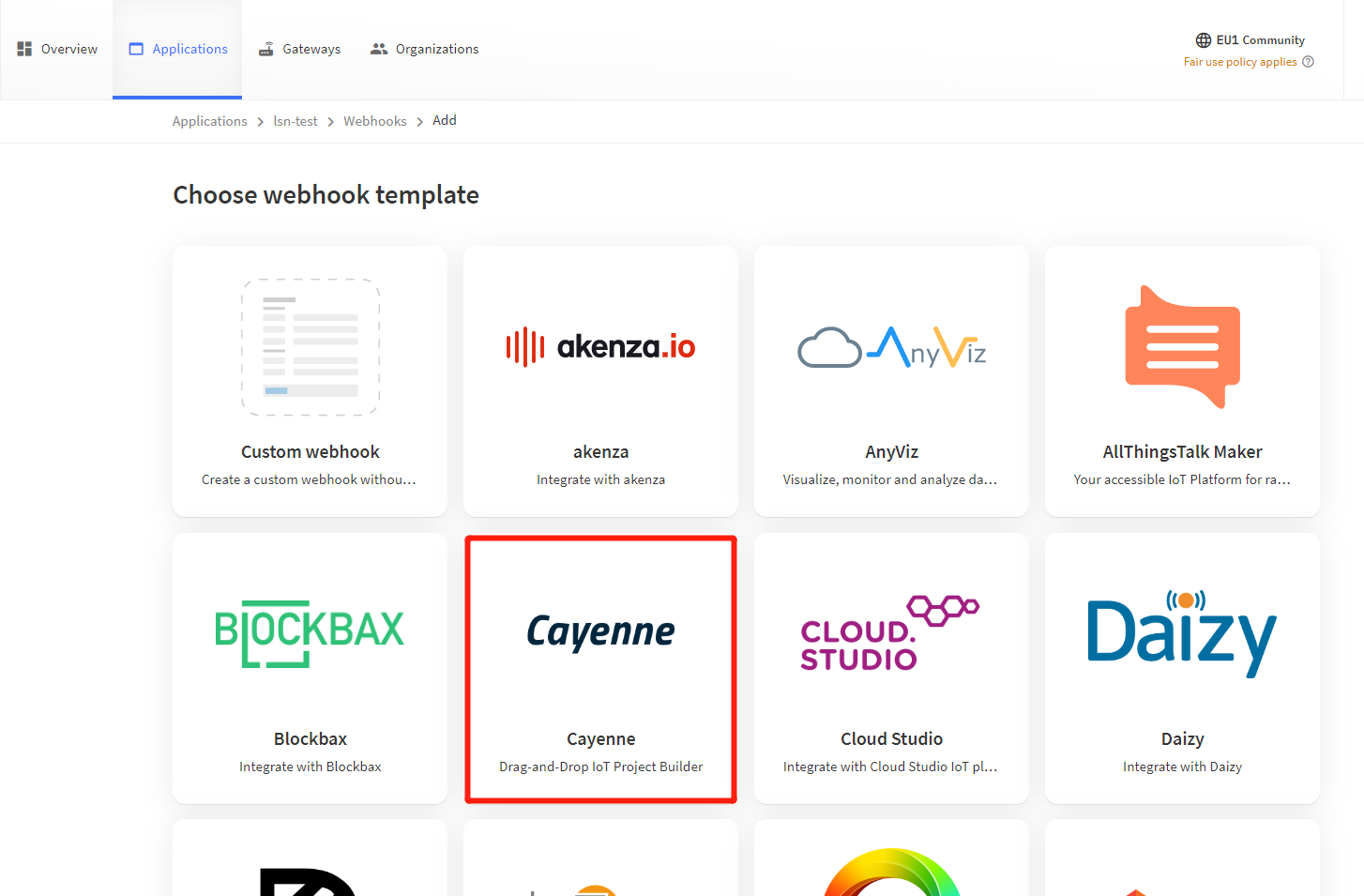

**Step 2：**Choose Cayenne

**Step 3：**Successfully created webhooks

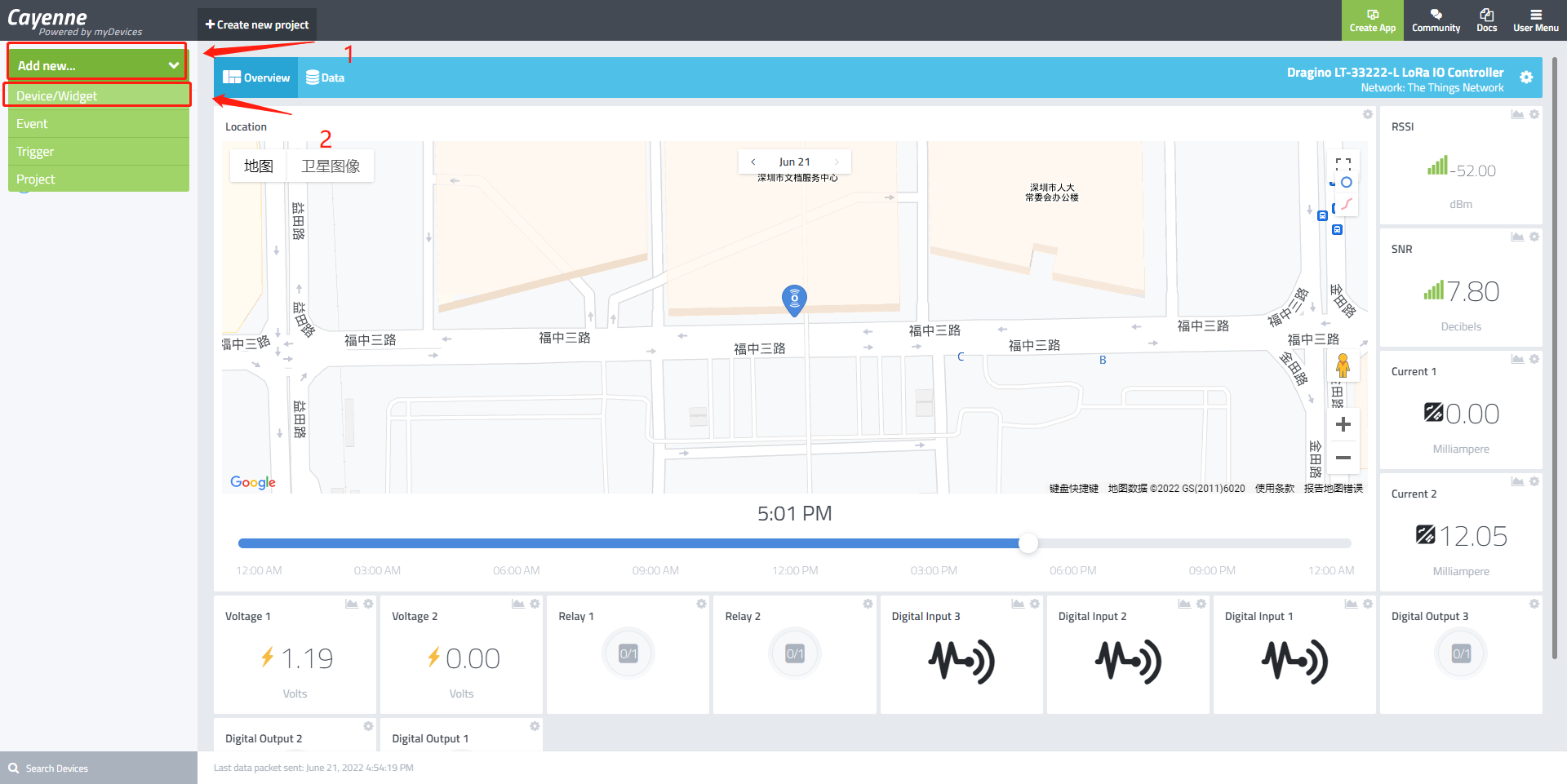

**Step 4：**Add new Device in Cayenne

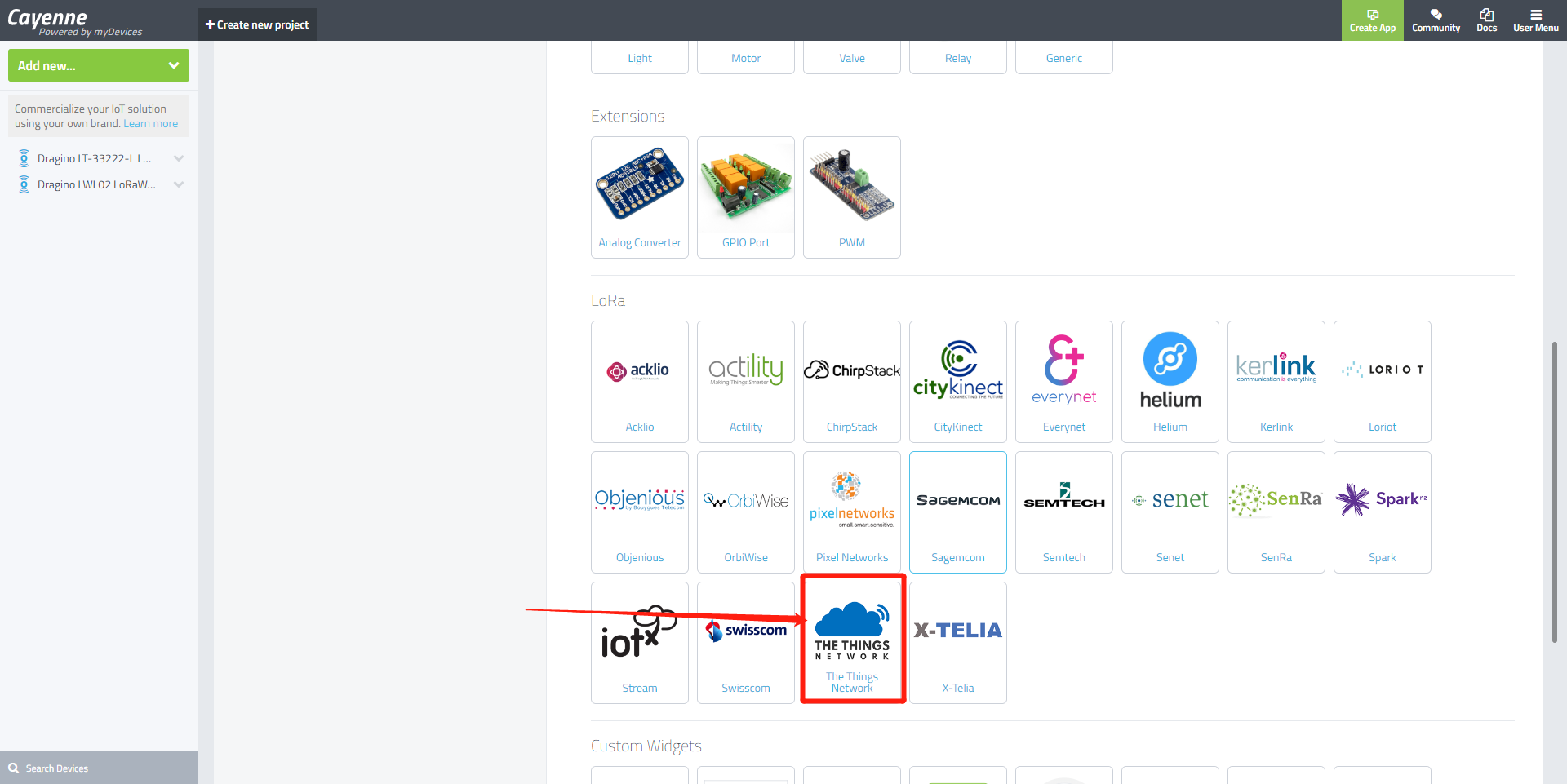

Step 5：[ ]Select TTN

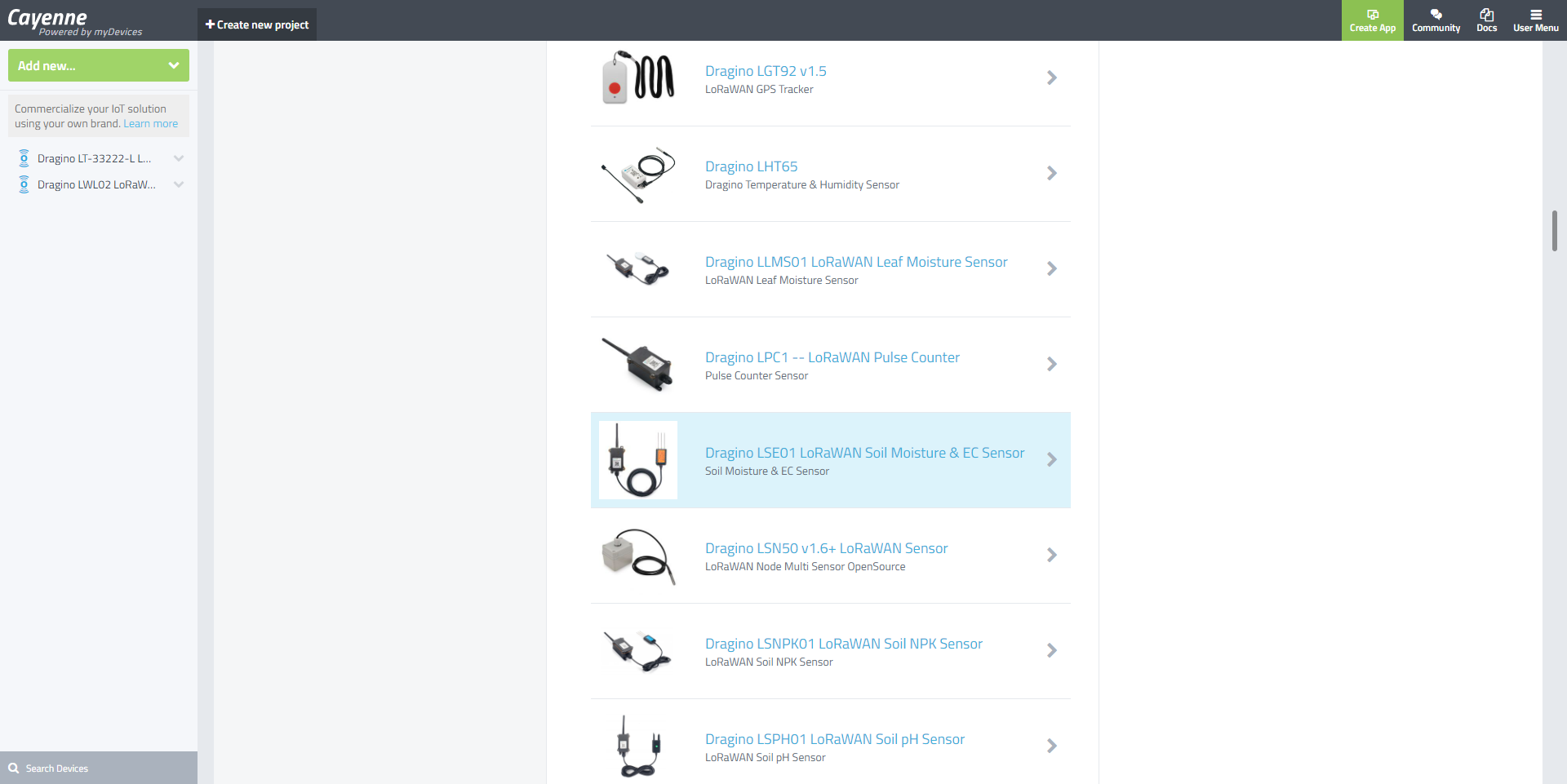

**Step 6：**Select the device you need

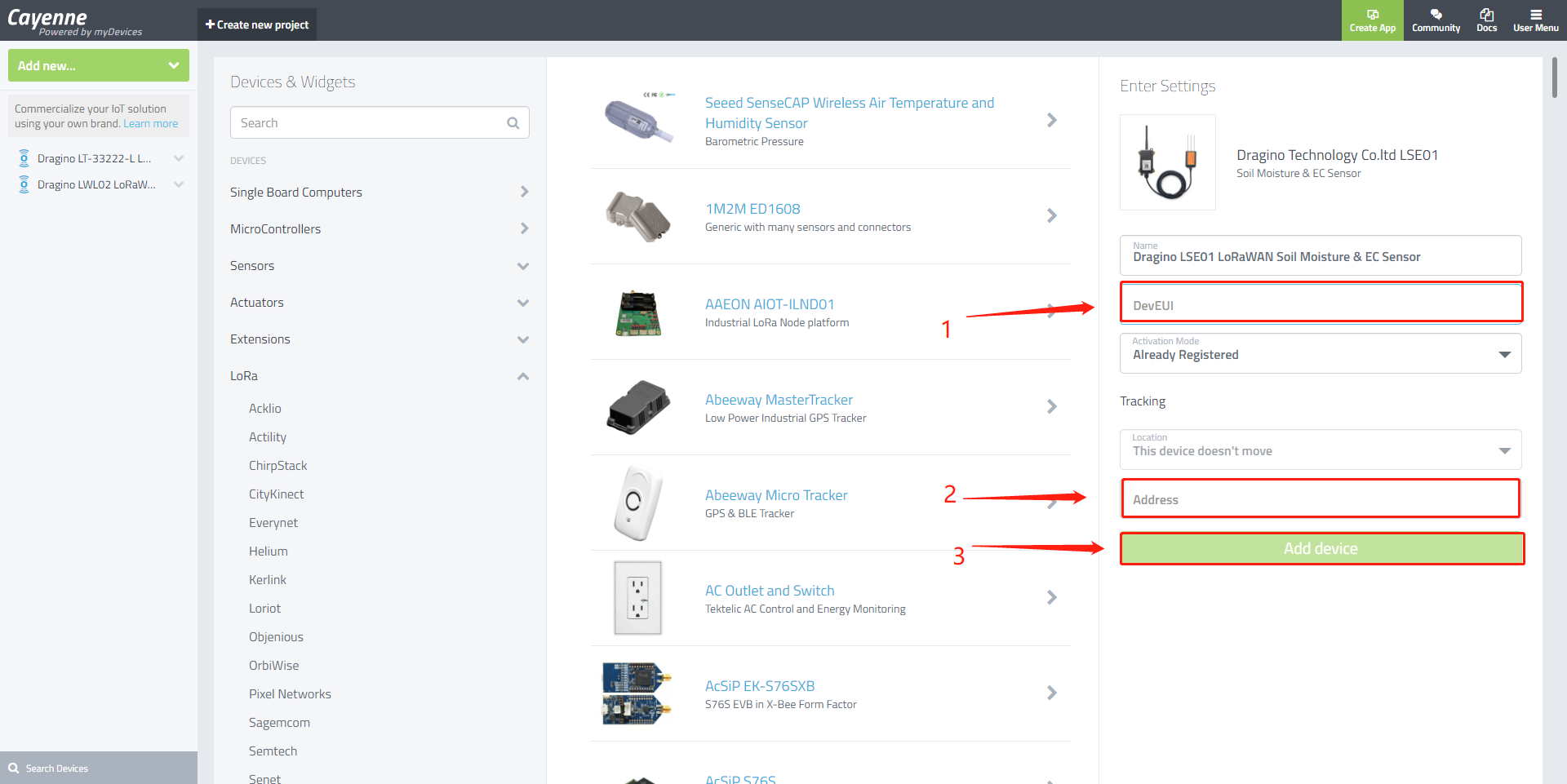

**Step 7：**Enter Deveui and Location

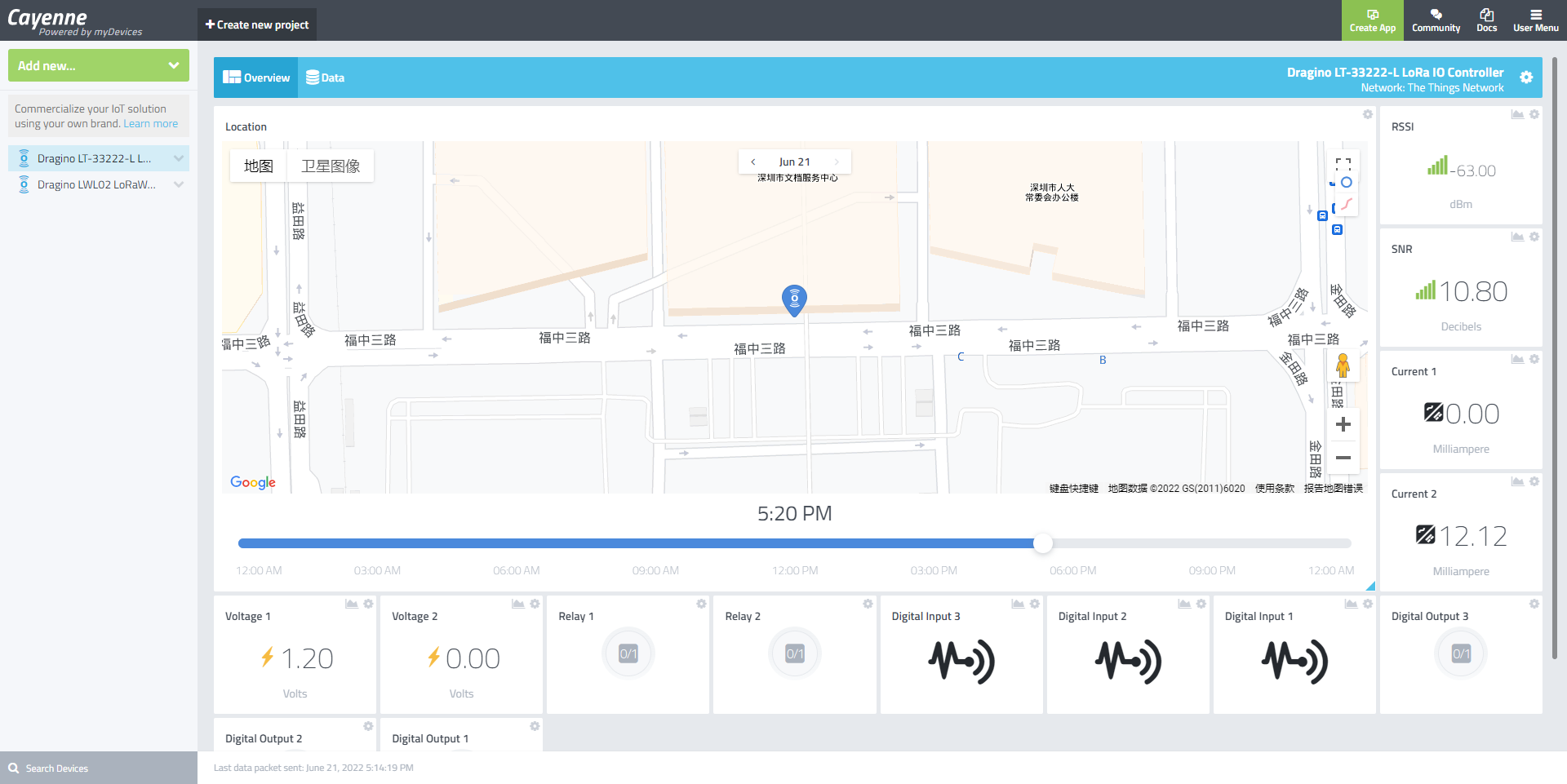

**Step 8：**Complete connection

3.  Create Alarm event in Cayenne

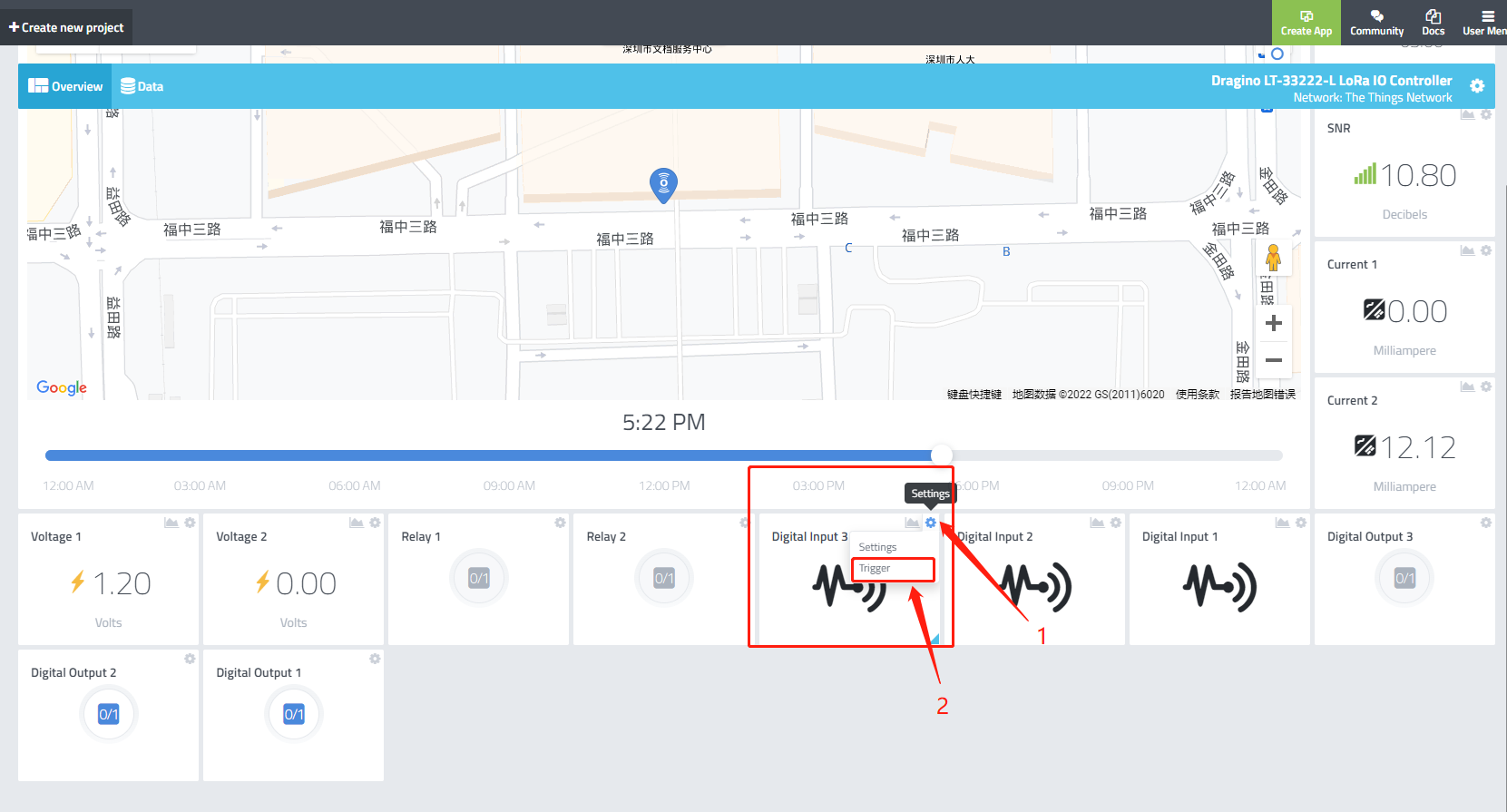

**Step 1:  **Select widget to alarm，Click settings in the upper right corner - trigger

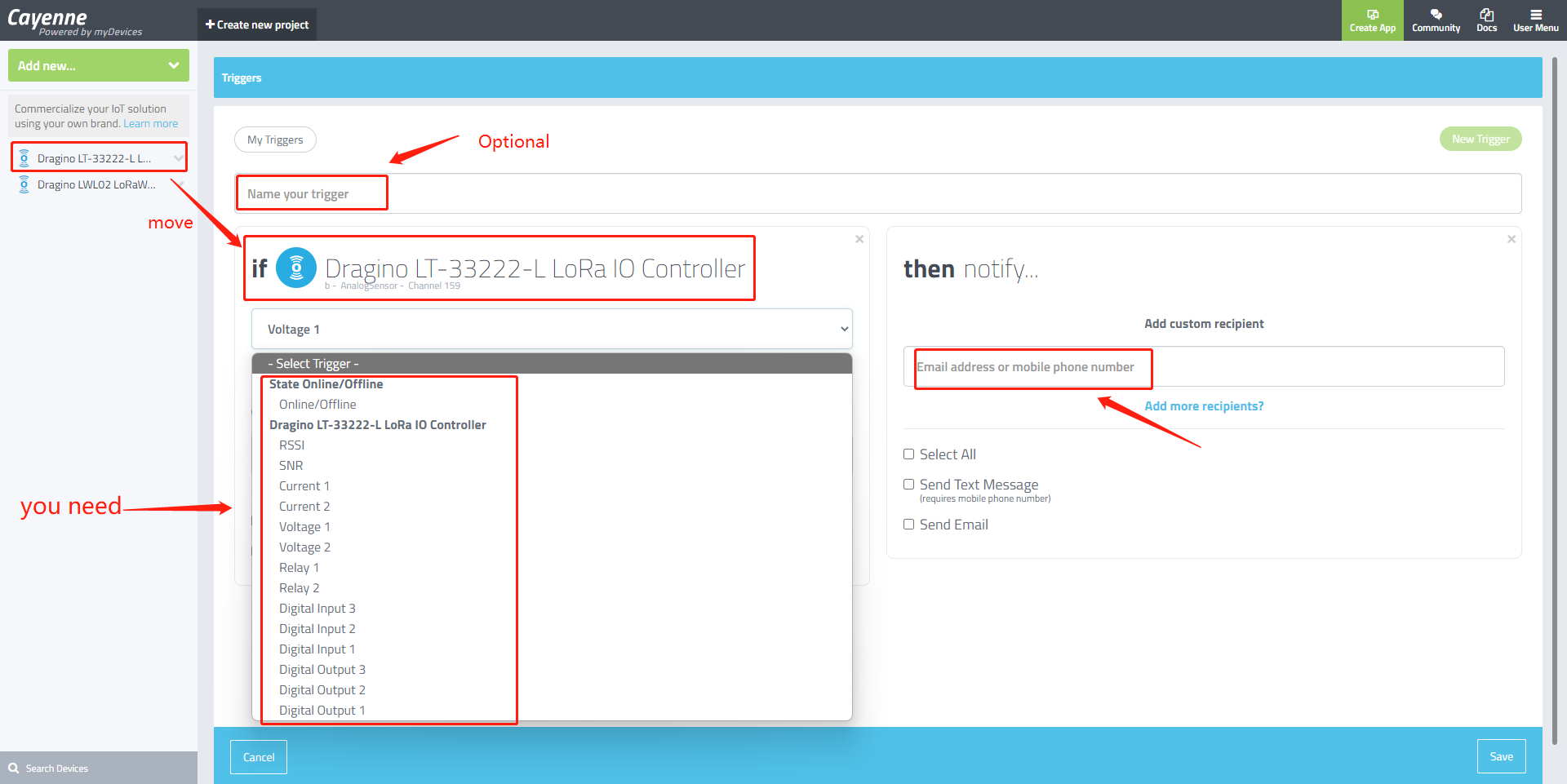

**Step 2：**Set your trigger and alarm address

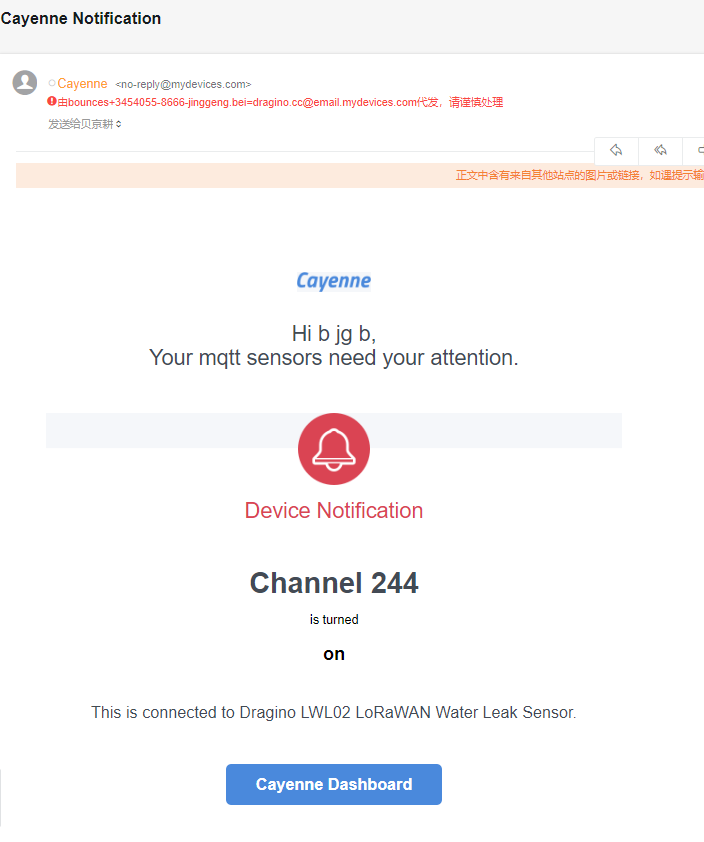

**Step 3：**When an alarm occurs, it will be sent to your email or mobile phone
