Overview

This section contains Dragino Mesh product documentation.

Dragino Mesh is a private LoRa mesh network for battery-powered sensor nodes. It runs on the STM32WL / LoRa-E5 platform and is based on Meshtastic firmware with Dragino-specific changes. Unlike a LoRaWAN star network, where every node talks directly to a gateway, mesh nodes relay each other's packets so data can travel several hops to reach a gateway node without every node being in direct radio range.

Applies to: Dragino Mesh Node products: SN50v3-MS, S31B-MS, SE01-MS, SPH01-MS, LMS01-MS, SDI-12-MS, CPL03-MS, SVC01-MS
Firmware: Dragino MeshNode firmware based on Meshtastic LoRa technology
Network: Dragino private LoRa Mesh network

Category	Description
Quick Start of Mesh IoT Network	Step-by-step guide to deploy your first mesh network
Frequency Plan	Dragino Mesh Node use below default Frequency Plan
Mesh End Node	Mesh sensor nodes, including SN50V3-MS and S31B-MS
Mesh Edge Gateway	Mesh edge gateway documentation
FAQ	Frequently Asked Questions
Developer Instruction	Firmware customization, compiling, and flashing guides

1. Introduction

1.1 What is Dragino Mesh?

Dragino Mesh turns a Dragino sensor node into a member of a self-forming LoRa mesh. A node can send data directly to a Mesh gateway or relay it through other nodes that are awake, so not every node must have a direct connection to the gateway. The Mesh gateway collects the data and provides it to users or upper-layer applications. No cellular network, SIM card, or internet connection is required for node-to-node communication.

To deploy your first network, follow the Quick Start of Mesh IoT Network; for troubleshooting, see the FAQ; for building or modifying firmware, see the Developer Instruction.

1.2 Key features

• Off-grid: node-to-node communication needs no cellular network, SIM card, or internet connection.
• No LoRaWAN infrastructure: no LoRaWAN gateway and no network server (TTN / ChirpStack) are required.
• Multi-hop range: data reaches the Mesh gateway even when a node is out of its direct radio range, by relaying through other nodes that are awake.
• Low power: enrolled nodes follow a scheduled, time-aligned wake-up-and-send cycle (≈ 30 min by default) and sleep in between.
• Private, enrolled network: nodes are added to the Mesh gateway and enrolled into a private Dragino network; only enrolled nodes exchange business data.
• Region configuration: Mesh devices start with EU868 and the LONG_FAST modem preset (SF11 / BW 250 kHz). Before deployment, configure the node and Mesh gateway for the Region corresponding to the installation country and confirm that both use the same Region.

1.3 Typical applications

• Off-grid or private sensor networks in areas without LoRaWAN coverage.
• Agriculture and environmental monitoring, including soil moisture, EC and temperature, soil pH, or leaf wetness, using the RS485 / SDI-12 Mesh models.
• Remote or industrial sites where running a LoRaWAN gateway and network server is impractical.
• Extending sensor reach beyond a single radio hop by relaying through intermediate nodes.

2. How Dragino Mesh works

2.1 How a LoRa mesh works

Every node shares the same radio parameters (region, frequency, bandwidth, spreading factor). A node only hears traffic from nodes that use the same values. When a node transmits, nearby nodes rebroadcast the packet so it reaches farther.

Before rebroadcasting, a node listens for a short moment to check whether another node has already relayed the same packet; if it has, the node does not rebroadcast it. This "managed flooding" lets a packet travel outward hop by hop without every node re-sending every copy.

A hop limit caps how many times a packet is rebroadcast. Each relay decrements it; at zero the packet is no longer forwarded. Dragino business data is sent with a hop limit of 3.

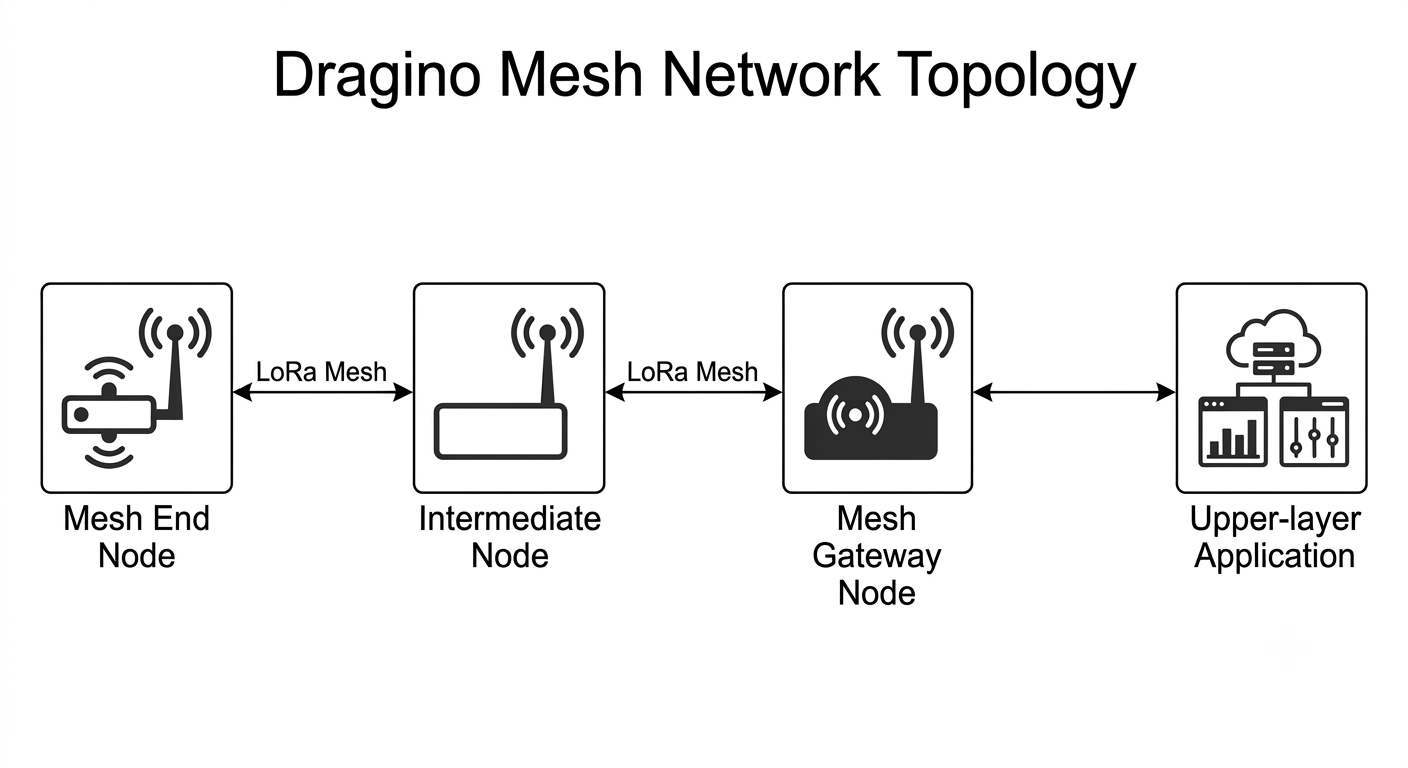

A single Mesh gateway (Dragino node running the gateway firmware) is the collection point. It provides the received data to users or upper-layer applications:

While a node is asleep, it cannot receive or relay data in real time. Mesh coverage therefore depends not only on the number of nodes, but also on node wake-up times, installation positions, antenna heights, obstructions, and Mesh gateway coverage.

2.2 Network roles and components

Component	Role
Mesh Node	A battery-powered Dragino sensor node installed at the deployment site. After enrollment, it collects site data, sends it to the Mesh gateway through the network, and can relay other nodes' packets while awake.
Mesh gateway node	The management and data reception device for the entire Mesh network. It adds devices, handles enrollment, receives node data, sends configurations, and provides data to users or upper-layer applications.
Gateway management interface	The device management pages of the Mesh gateway, accessed from a computer or management terminal. Used to add nodes (with their Dev EUI and App Key), check enrollment status, and access the received data.

[Mesh photo family]

2.3 Frequency and regions

Every node must use the LoRa frequency and power allowed in its installation country, and the nodes and Mesh gateway must use the same Region. Mesh devices start with EU868 by default. Before deployment, configure each device for the corresponding Region and confirm that the node and gateway settings match. All regions use the same LONG_FAST modem preset (SF11 / BW 250 kHz), so the Region configuration changes the applicable frequency and power. For the full list of regions, frequencies, and per-country profiles, see the Frequency Plan page.

2.4 Dragino Mesh vs. Dragino LoRaWAN

	Dragino Mesh	Dragino LoRaWAN
Topology	Mesh (multi-hop, nodes relay)	Star (node → gateway direct)
LoRaWAN gateway required	No	Yes
Network server required (TTN/ChirpStack)	No	Yes
Node roles	Unenrolled node (Client-Mute) / enrolled node (Client) / Mesh gateway	End node only
Reach beyond radio range	Yes, via other nodes	No
Typical use	Off-grid / private sensor networks	Standard LoRaWAN deployments

3. Models

3.1 Compatible models

All Mesh models share the same base platform (STM32WLE5JC MCU with an integrated SX126x-class radio). Each sensor variant is a separate firmware build.

Model	Measured parameter(s)	Firmware status
SN50v3-MS	Base / generic node (no dedicated onboard sensor)	Available
S31B-MS	Temperature & humidity (external SHT31 probe)	In development
SE01-MS	Soil moisture, EC & soil temperature (RS485 probe)	In development
SPH01-MS	Soil pH & temperature (RS485 probe)	In development
LMS01-MS	Leaf wetness & leaf temperature (RS485 probe)	In development
SDI-12-MS	SDI-12 sensor interface	In development
CPL03-MS	(to be confirmed)	In development
SVC01-MS	(to be confirmed)	In development

Note

Each model has its own product page under Mesh End Node, where datasheet, configuration, wiring, and profiles live.

3.2 Related pages

Category	Description
Mesh End Node	Mesh sensor nodes (SN50v3-MS, S31B-MS, and other MS series products).
Mesh Edge Gateway	Mesh gateway products, gateway setup, and bridge-related documentation.
