TrackerD-LS BLE indoor positioning example

1. Python Examples​

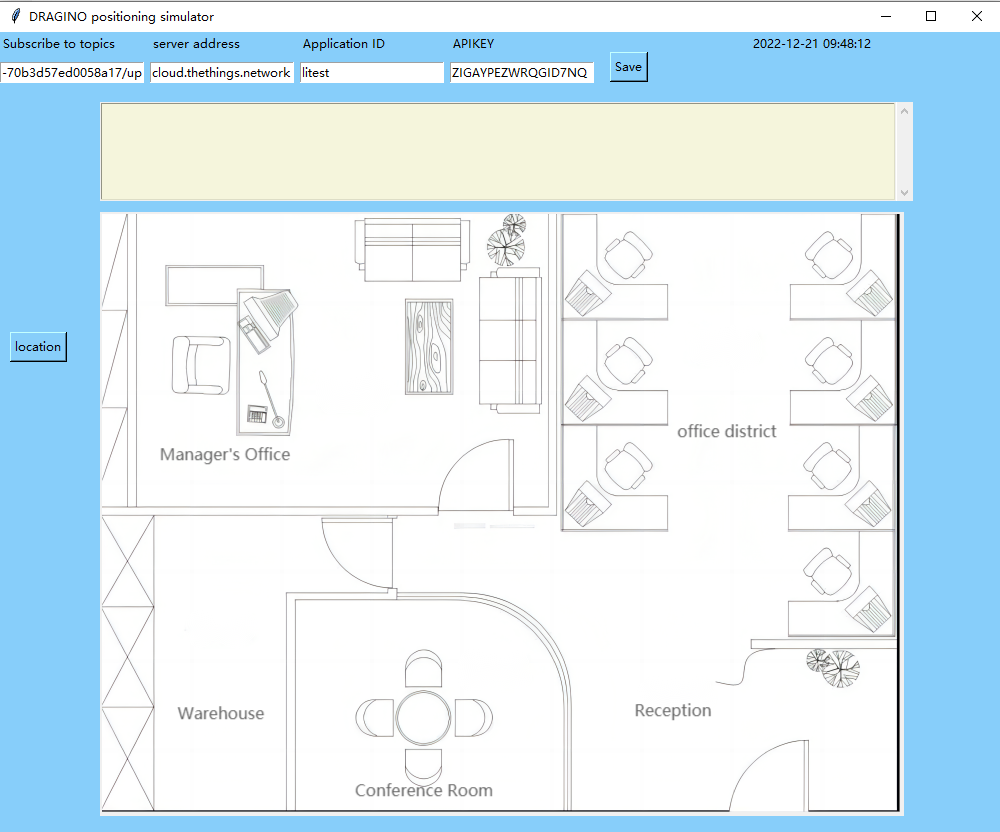

Step 1: Configure Python Simulator​

Enter the following information：

Subscribe to topics：MQTT Subscription Topic of TTN-V3

Example: v3/litest@ttn/devices/eui-70b3d57ed0058a17/up

  • v3: Unchanging
  • litest@ttn: 'litest' is the ID of the application, '@ttn' unchanging.If you use your own TTN platform, @ ttn doesn't need
  • devices: Unchanging

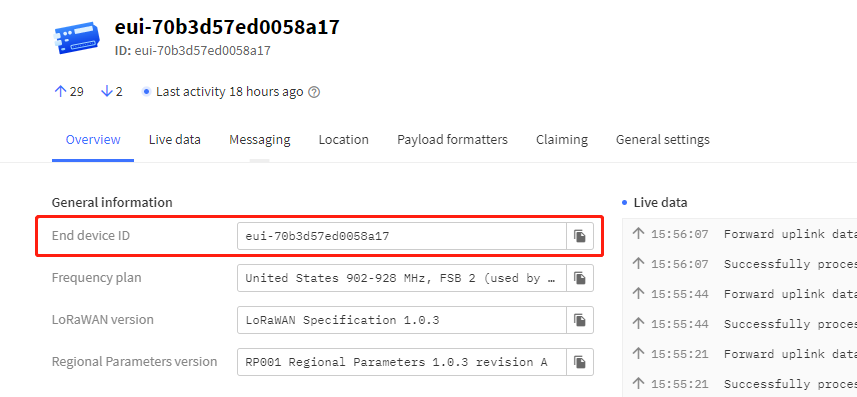

  • eui-70b3d57ed0058a17: TrackerD End Device ID
  • Up: Unchanging

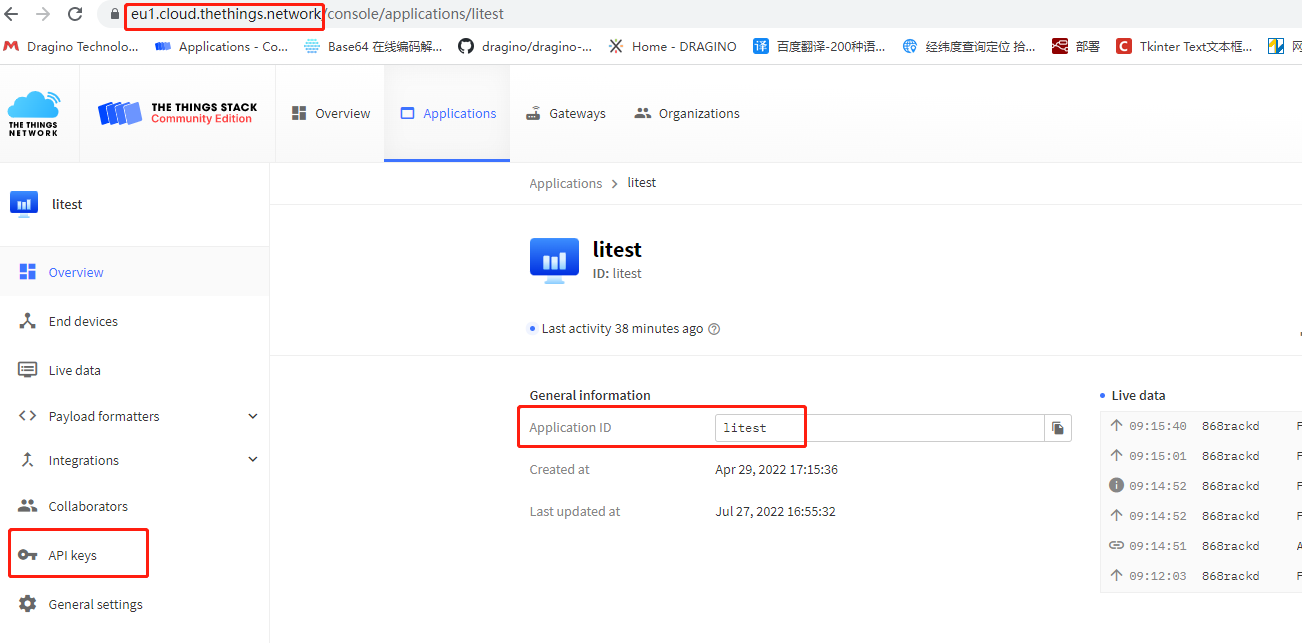

server address：Server address of TTN-V3

Application ID：Application ID of TTN-V3

APIKEY：APIKEY of your own account

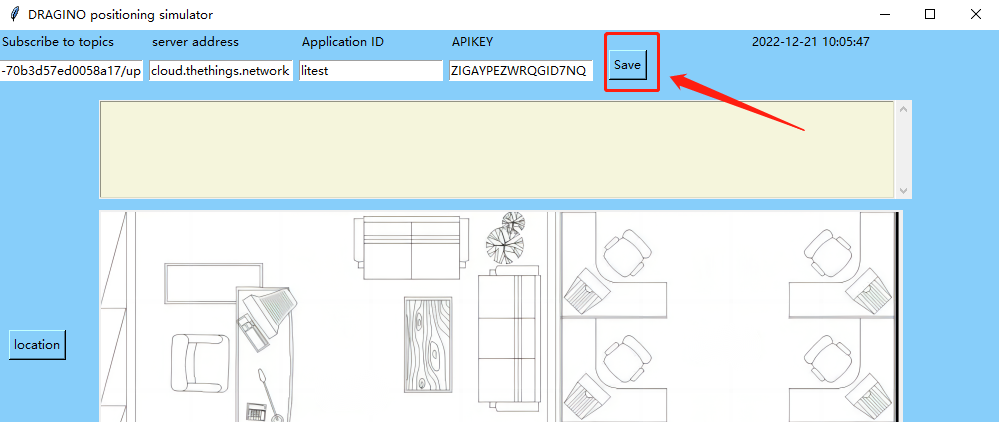

Step 2: Click the save button after writing​


Warning:

When the save button is pressed, it cannot be pressed again to prevent data confusion.

If you want to modify the subscription topic, you need to restart the application.

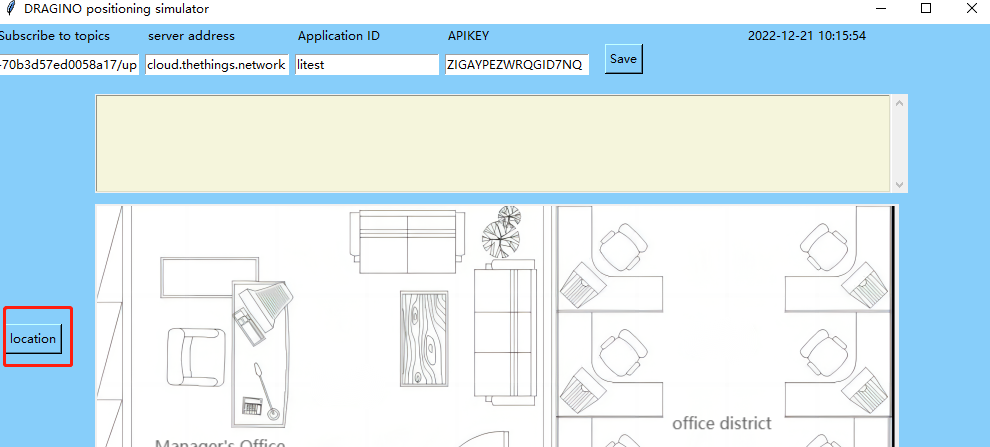

Step 3: Click the location button​

Just press once


When the BLE node sends information, the application will display the located base station.

Step 4: About how to set the base station point and insert the floor plan​

Place the floor plan in the same path as the python script

Change the file name to office_map(The picture pixel is 800x600)


Open source code

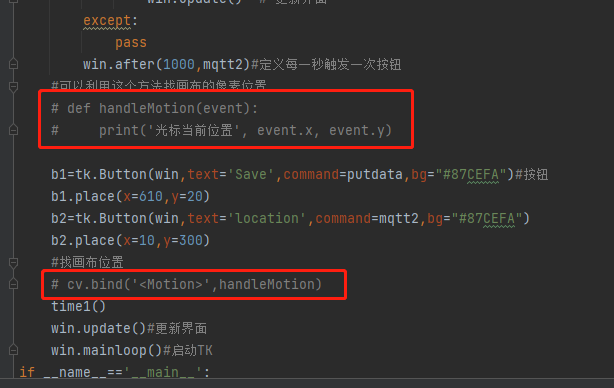

Remove comments


Run Script

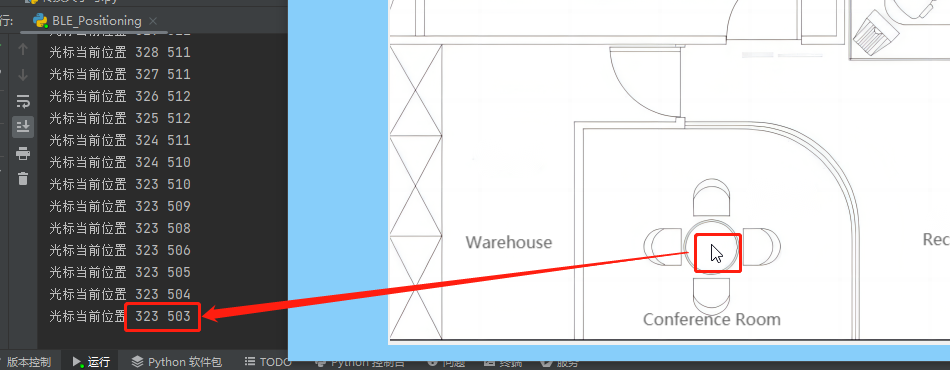

The cursor position is the data pointed by the arrow, x=323 y=503

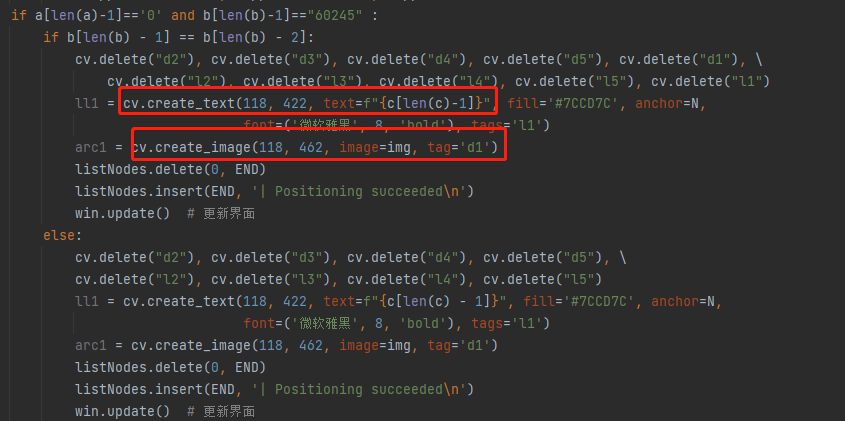

cv. create_ Image is changed to (323,483)--(x y-20 above)

cv. create_ Image is changed to (323,503)---(x y above)

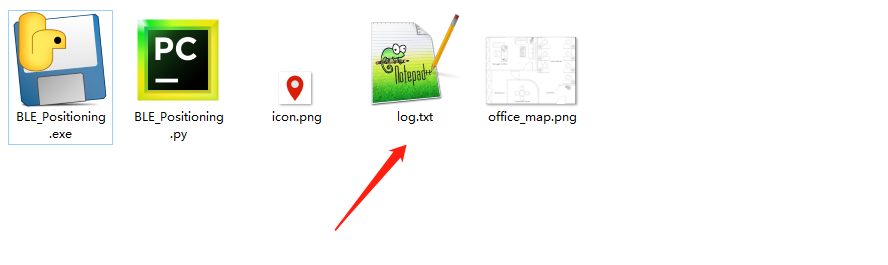

After clicking Save, a log.txtwill be generated in the same directory as the script



Back to script

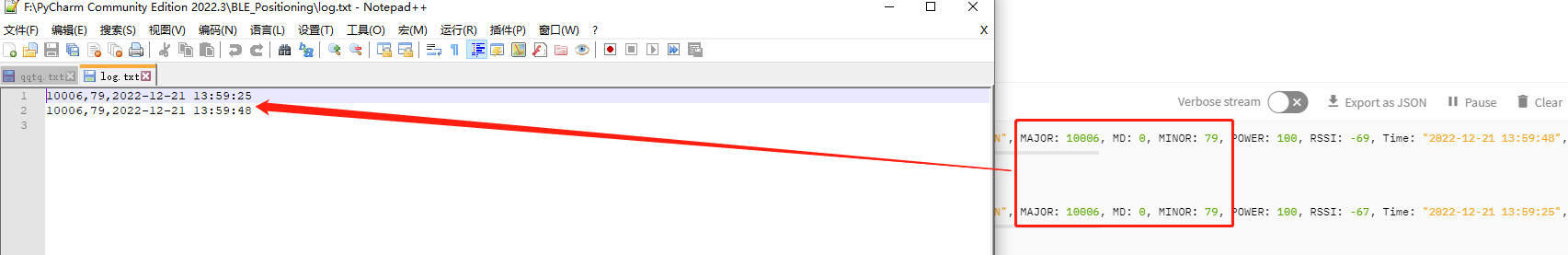

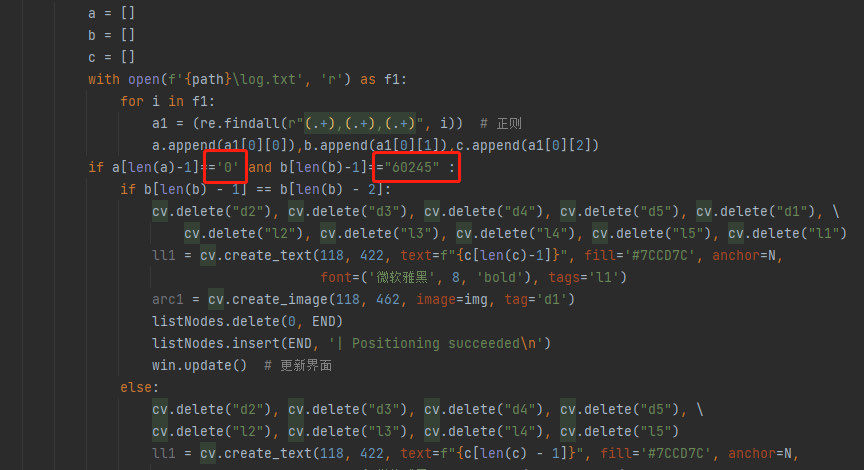

Modifythe data obtained in log.txt to the script

“0” Changed to “10006”

“60245” Changed to “79”


Step 5: Package the py file into an exe​

**Step 1：**Installing the pyinstaller module

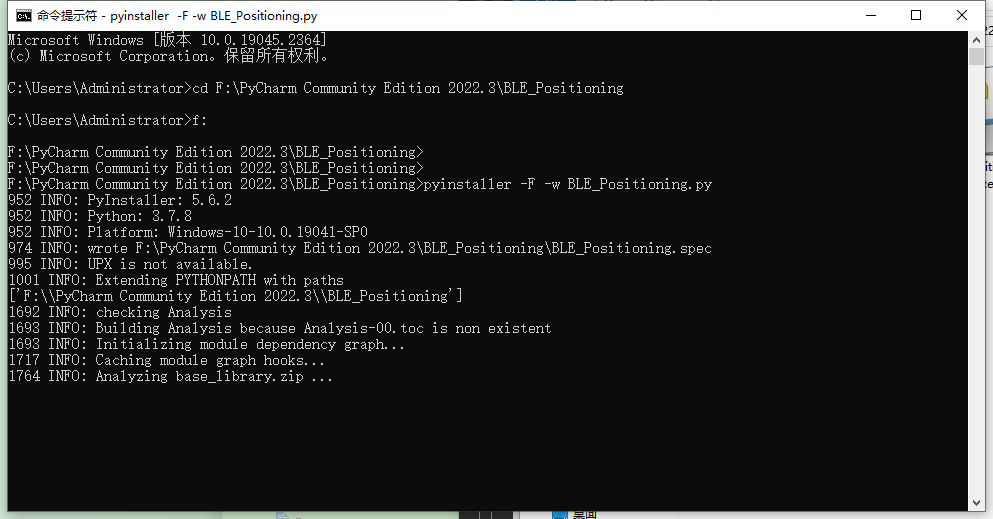

**Step 2：**Open cmd and switch to the directory where the script is located


**Step 3：**Enter the following command


See the following certificate packaging completed.


The following files will be generated in the same directory of the script.

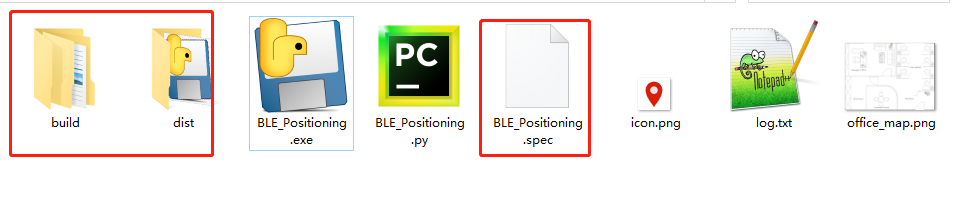

In addition to dist, the other two files can be deleted.

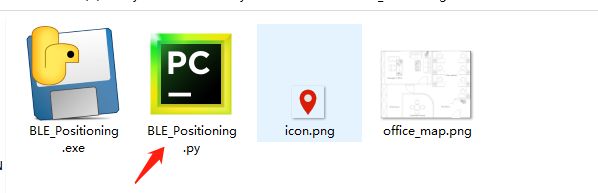

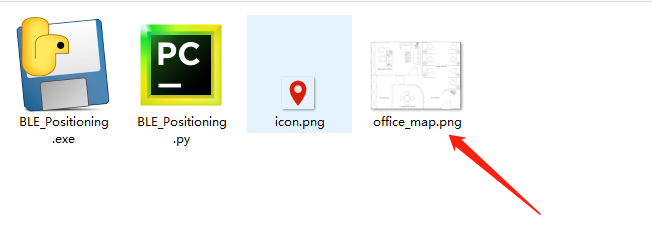

Finally, put the office_ Map.png and icon.png Put the into the dist folder.

Just run the program in dist.
